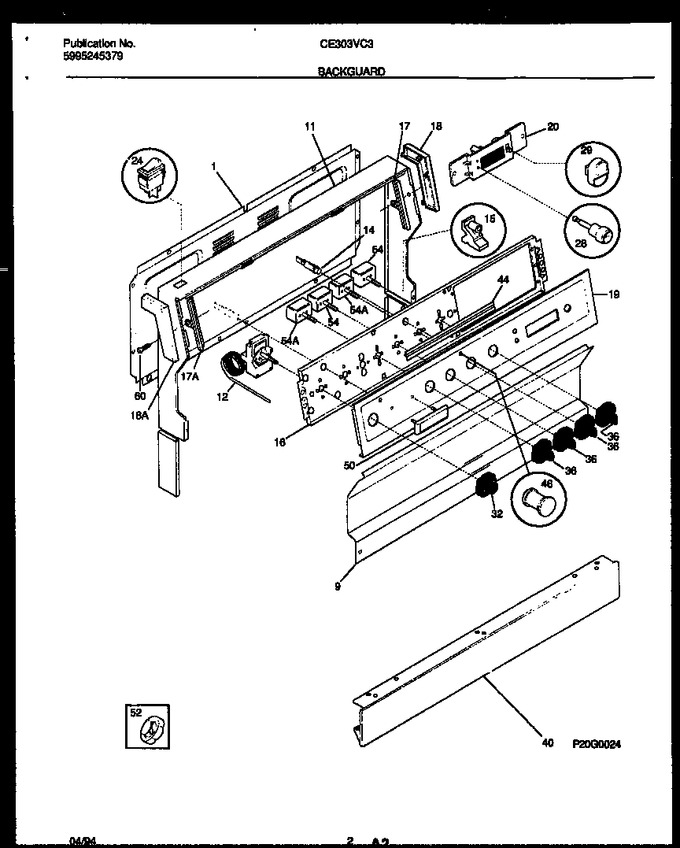

02 - Backguard


03 - Body Parts


04 - Cooktop And Drawer Parts


05 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043602		Trim-splasher, Almond		Appelez-nous	-
11	3204764		Trim-wrapper		Appelez-nous	-
12	5303212745		Thermostat-oven		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	5303212662		Plate, Instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	3204747		End Cap, Rh		Appelez-nous	-
19	316034511		Panel-control,metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316016803		Knob-thermostat		Appelez-nous	-
36	316016902		Knob-control, Infinite Sw		Appelez-nous	-
40	316009222		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	5308037703		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
50	316052100		Bezel-nameplate		Appelez-nous	-
52	5303131215		Nut, Twist		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
60	5303293427		Screw-end Cap		Appelez-nous	-
*96977	3051224		Retainer-lens		Appelez-nous	-
*96978	5303272555		Clip-backguard		Appelez-nous	-
*96978	3204745		Bushing-ctrl Shaft		Appelez-nous	-
14A	3201726		Light/lamp, Indicator, Blue, 250 V (non-illustrated)		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	3204746		End Cap, Lh		Appelez-nous	-
54A	5303285143		Switch, 8`` Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
