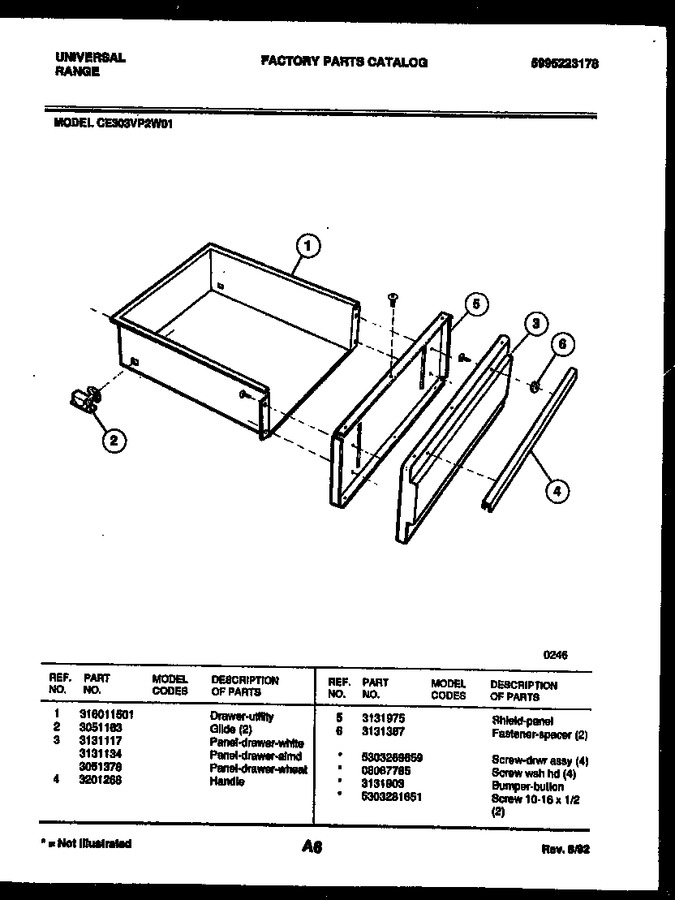

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3051163 | Glide (2) |
|
Immediately | $ 19.41 | ||||
| 3 | 3131117 | Panel-drawer, White |
|
- | |||||
| 3 | 3131134 | Panel, Drawer, (almd) |
|
- | |||||
| 3 | 3051378 | Panel, Drawer, Wheat |
|
- | |||||
| 4 | 3201268 | Handle |
|
- | |||||
| 5 | 3131975 | Shield-panel |
|
- | |||||
| 6 | 3131387 | Fastener-spacer (2) |
|
- | |||||
| *64963 | 5303269859 | Screw-drwr Assy (4) |
|
- | |||||
| *64963 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *64963 | 5303281651 | Screw 10-16 X 1/2 (2) |
|
- | |||||
| *64963 | 08067785 | Screw Wsh Hd (4) |
|
- |
