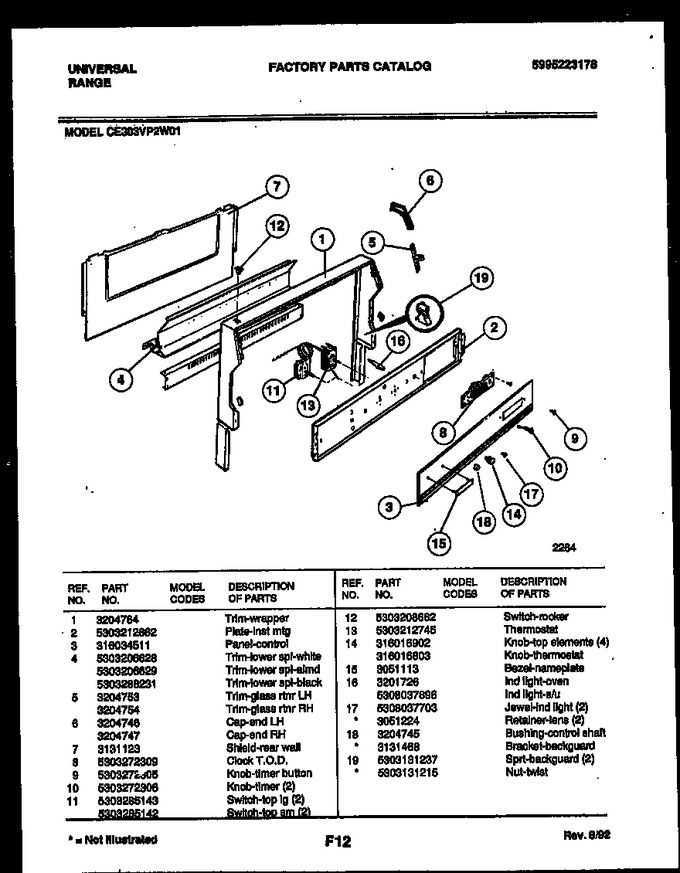

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204764		Trim-wrapper		Appelez-nous	-
2	5303212662		Plate - Inst Mtg		Appelez-nous	-
3	316034511		Panel-control		Appelez-nous	-
4	5303206628		Trim-lower Spl-white		Appelez-nous	-
4	5303288231		Trim-lower Spl-black		Appelez-nous	-
4	5303206629		Trim-lower Spl-almd		Appelez-nous	-
5	3204754		Trim-glass Rtnr Rh		Appelez-nous	-
5	3204753		Trim-glass Rtnr Lh		Appelez-nous	-
6	3204747		Cap-end Rh		Appelez-nous	-
6	3204746		Cap-end Lh		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	5303272309		Clock T.o.d.		Appelez-nous	-
9	5303272305		Knob-timer Button				$ 38.80
10	5303272306		Knob-timer (2)		Appelez-nous	-
11	5303935086		Switch-top Sm (2)   (Replaces: 5303285142)			Immediately	$ 51.95
11	5303285143		Switch-top Lg (2)		Appelez-nous	-
12	5303208662		Switch-rocker		Appelez-nous	-
13	5303212745		Thermostat		Appelez-nous	-
14	316016803		Knob-thermostat		Appelez-nous	-
14	316016902		Knob-top Elements (4)		Appelez-nous	-
15	3051113		Bezel, Nameplate		Appelez-nous	-
16	3201726		Ind Light-oven		Appelez-nous	-
16	5308037896		Indicator Light				$ 39.75
17	5308037703		Jewel-ind Light (2)		Appelez-nous	-
17	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
18	3131468		Bracket-backguard (non-illustrated)		Appelez-nous	-
18	3204745		Bushing, Control Shaft		Appelez-nous	-
19	5303131237		Sprt-backguard (2)		Appelez-nous	-
*74579	5303131215		Nut, Twist		Appelez-nous	-
