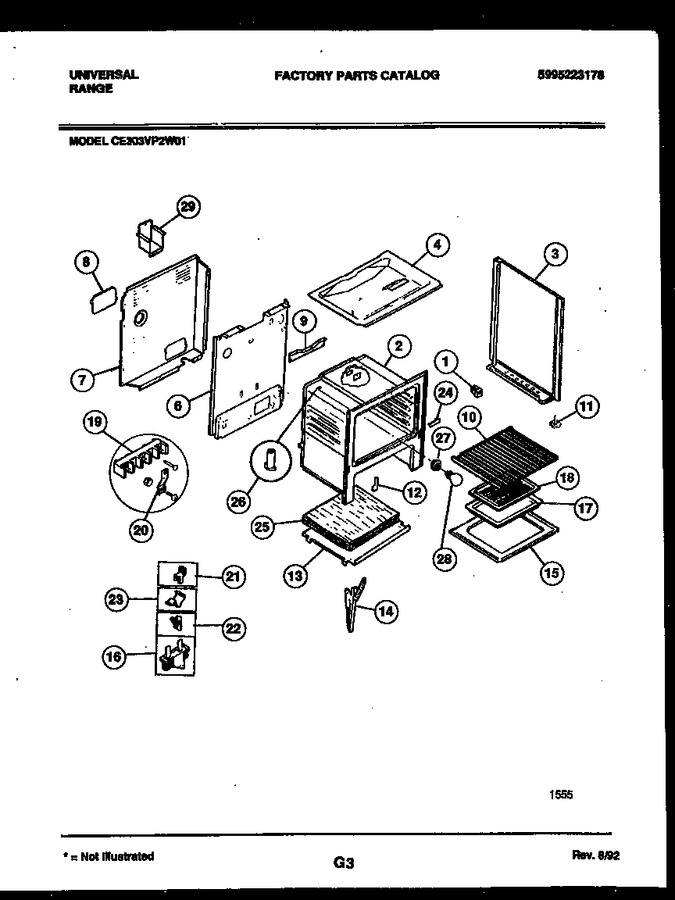

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 5303269518 | Panel-side Rh-white |
|
- | |||||
| 3 | 5303271918 | Panel-side Lh-wheat |
|
- | |||||
| 3 | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 3 | 5303269519 | Panel-side Lh-white |
|
- | |||||
| 3 | 5303271917 | Panel-side Rh-wheat |
|
- | |||||
| 3 | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 4 | 5303271756 | Burner Box |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-low Wall |
|
- | |||||
| 8 | 3203405 | Cover-low Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 5303281625 | Rack-oven (2) |
|
- | |||||
| 11 | 3206285 | Screw-level (4) |
|
- | |||||
| 12 | 3131570 | Cover-hinge (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 316007001 | Channel-hinge (2) |
|
$ 234.55 | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 16 | 5303203651 | Fuse-thermal |
|
$ 77.86 | |||||
| 17 | 5303013568 | Broiler Pan |
|
- | |||||
| 18 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5303212739 | Ground Strap |
|
- | |||||
| 21 | 5303011805 | Clip-thermal (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 5303015372 | Cover-front |
|
- | |||||
| 25 | 3051390 | Insulation-bottom |
|
- | |||||
| 26 | 5303283907 | Tube-oven Vent |
|
- | |||||
| 27 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 27 | 5303051099 | Nut-hex Brass (6) (non-illustrated) |
|
- | |||||
| 27 | 5303212762 | Screw-hinge (non-illustrated) |
|
- | |||||
| 27 | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 27 | 3014073 | Socket-oven Light |
|
- | |||||
| 27 | 3017142 | Insulation, Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 28 | 5303203582 | Bulb-oven Light |
|
- | |||||
| 29 | 3203582 | Shield-rear Wall |
|
- | |||||
| *74597 | 3203550 | Plug-button (2) |
|
Immediately | $ 15.22 | ||||
| *74597 | 3934056 | Anti-tip Kit |
|
- | |||||
| *74597 | 5303206618 | Bracket-range Cable Mtg |
|
- | |||||
| *74597 | 316002012 | Wiring Diagram (not For Purchase) |
|
- |
