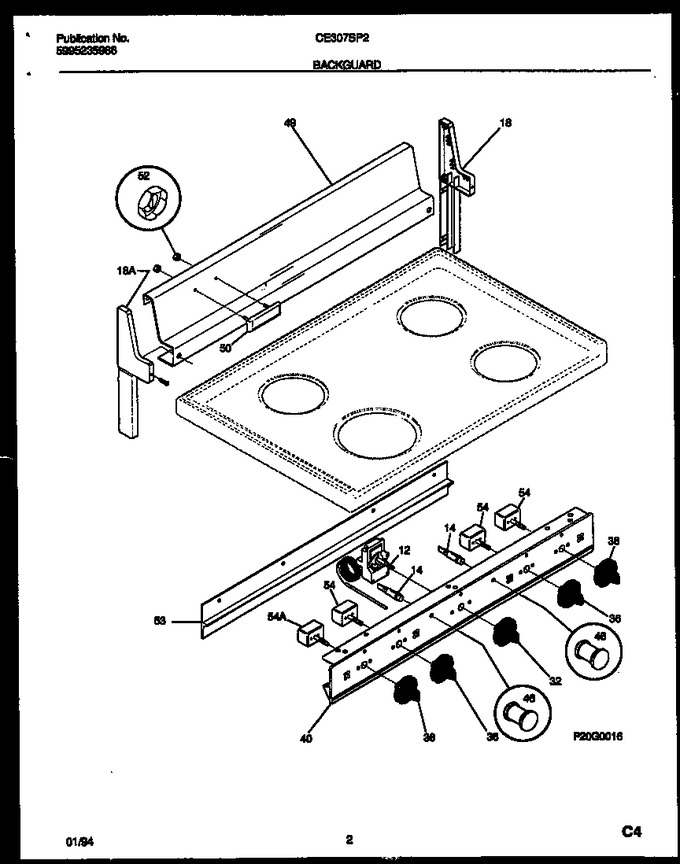

02 - Backguard
03 - Body Parts
04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5303210266 | Thermostat-oven |
|
- | |||||
| 14 | 5303210270 | Light/lamp, Indicator, Red, 250 V, (2) |
|
- | |||||
| 18 | 3202802 | Cap-end, Black, Rh |
|
- | |||||
| 32 | 5303288321 | Knob-thermostat |
|
- | |||||
| 36 | 5303288320 | Knob-control, Infinite Sw |
|
- | |||||
| 40 | 316009221 | Panel-manifold |
|
- | |||||
| 46 | 3016821 | Lens-light/lamp, Indicator, Amber |
|
- | |||||
| 49 | 3051199 | Panel-backguard, White |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist-on, (2) |
|
- | |||||
| 53 | 3204623 | Shield-heat, Extrusion |
|
- | |||||
| 54 | 5303051540 | Switch-6`` Element |
|
- | |||||
| 18A | 3202801 | Cap-end, Black, Lh |
|
- | |||||
| 54A | 5301313767 | Switch-8`` Element |
|
- |
