SELECT A DIAGRAM

01 - 30978 Transmission Assy Components


02 - 33227 Transmission Assy Components


03 - Agitator, Drive Bell & Seal Kit


04 - Brg Hsg/brake/pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Front Panel, Cabinet & Base

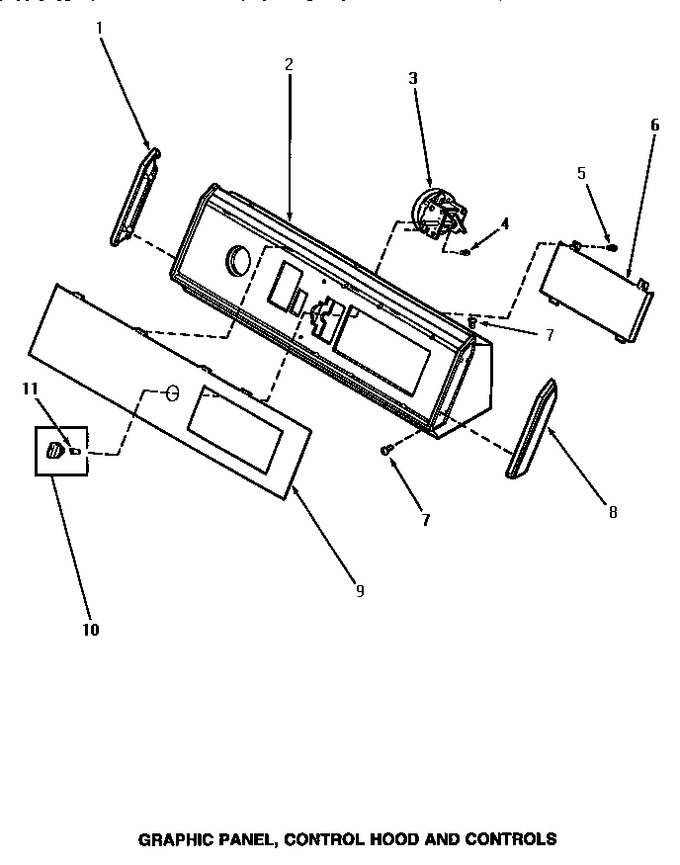

07 - Graphic Panel, Control Hood & Controls


08 - Hoses/back Fl Preventer & Vlv Brkt


09 - Lint Filter, Washtub & Hub


10 - Loading Door Switch & Bracket Assy


11 - Mixing Valve Assy


12 - Mixing Valve Assy


13 - Motor, Mtg Bracket, Belts & Idler Assy


14 - Outer Tub, Cover & Pressure Hose


15 - Power Cord & Wire Terminals


16 - Pump Assy/brkt/hoses & Siphon Break Kit


17 - Special Tools


18 - Special Tools


19 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	32343		Insert,control Hood-l.		Appelez-nous	-
2	31809		Assy,hood & Mounting B		Appelez-nous	-
3	31266		Switch,pressure-rotary		Appelez-nous	-
4	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
5	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
6	31306		Electronic Control		Appelez-nous	-
7	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
8	32342		Insert,control Hood-r.		Appelez-nous	-
9	32357		Panel,graphic		Appelez-nous	-
10	31286		Assy,knob-rotary-blk/o		Appelez-nous	-
11	10519		Retainer		Appelez-nous	-
	NOTE:		The Individual Motors Are Not Available Separately, Order Complete Motor Assemblies.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
