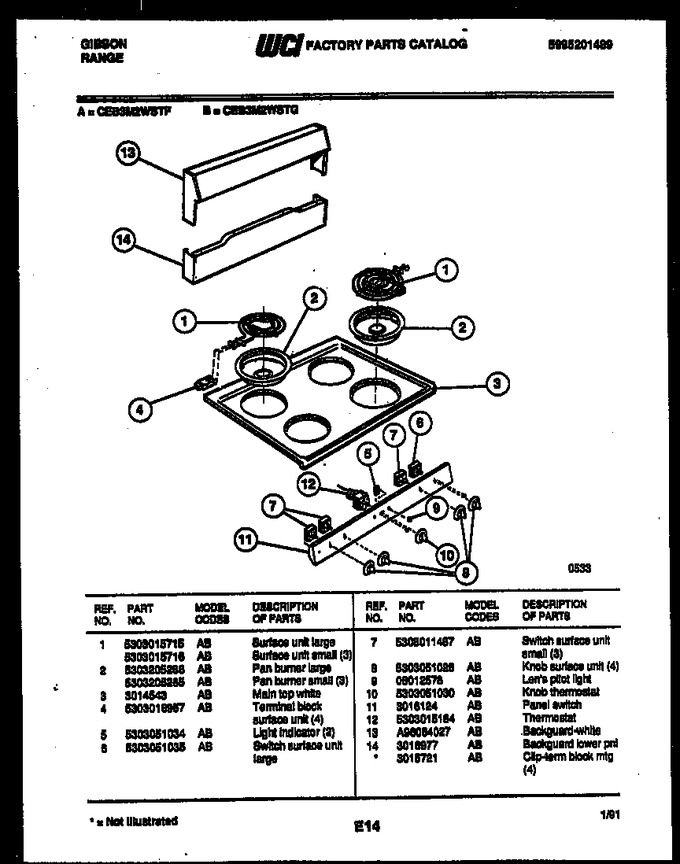

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Backguard And Cooktop Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316442300 | Surface Unit - Large (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 2 | 5303205286 | Pan Burner Large |
|
- | |||||
| 3 | 3014543 | Main Top White |
|
- | |||||
| 4 | 5303016957 | Terminal Block Surface Unit (4) |
|
- | |||||
| 5 | 5303051034 | Light-indicator (2) |
|
- | |||||
| 6 | 5303051035 | Switch Surface Unit Large |
|
- | |||||
| 7 | 5308011487 | Switch Surface Unit Small (3) |
|
- | |||||
| 8 | 5303051028 | Knob-surface Unit (4) |
|
- | |||||
| 9 | 5303051028 | Knob-surface Unit (4) |
|
- | |||||
| 10 | 5303051030 | Knob-thermostat |
|
- | |||||
| 11 | 3016124 | Panel Switch |
|
- | |||||
| 12 | 5303015184 | Thermostat |
|
- | |||||
| 13 | A96064027 | Backguard-white |
|
- | |||||
| 14 | 3016977 | Backguard Lower Pnl |
|
- | |||||
| *35531 | 3015721 | Clip-term Block Mtg (4) |
|
- | |||||
| 1A | 318372210 | Surface Unit - Small (3) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 2A | 5303205285 | Pan Burner Small (3) |
|
- |
