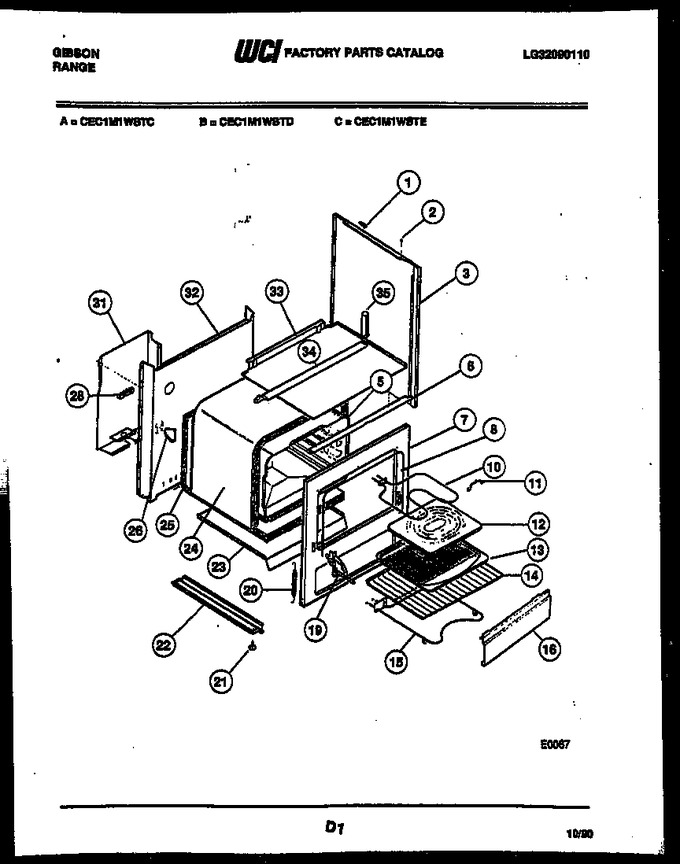

02 - Backguard And Cooktop Parts
03 - Backguard
04 - Body Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-maintop |
|
- | |||||
| 2 | 08068054 | Grommet |
|
- | |||||
| 3 | 5303051061 | Panel-body Side (white) |
|
- | |||||
| 3 | 5308014019 | Panel Bodyside-almd |
|
- | |||||
| 5 | 3017789 | Liner-oven Top |
|
- | |||||
| 5 | 3017787 | Liner-oven Bottom |
|
- | |||||
| 5 | 3017788 | Liner-oven Back |
|
- | |||||
| 5 | 3016533 | Liner-oven Rh |
|
- | |||||
| 5 | 3017599 | Liner-oven Lh |
|
- | |||||
| 6 | 3131811 | Support Control Pnl |
|
- | |||||
| 7 | 3205578 | Front - Frame |
|
- | |||||
| 8 | 5308008022 | Door Seal |
|
$ 124.89 | |||||
| 10 | 5303009293 | Element-broil |
|
- | |||||
| 11 | 5303009445 | Support-broil Element |
|
- | |||||
| 12 | 5303017712 | Broiler Grid |
|
- | |||||
| 13 | 5303016973 | Broiler-pan |
|
- | |||||
| 14 | 5303015714 | Oven Rack (2) |
|
- | |||||
| 15 | 5303017027 | Element-bake |
|
- | |||||
| 16 | A35049004 | Panel-dummy Almd |
|
- | |||||
| 16 | 3012963 | Panel-dummy White |
|
- | |||||
| 19 | 5303204672 | Hinge-oven Dr Lh |
|
- | |||||
| 19 | 5303204670 | Hinge-oven Dr-rh |
|
- | |||||
| 20 | 5303009435 | Spring-oven Dr (2) |
|
- | |||||
| 21 | 5303051080 | Leg-leveling (4) |
|
- | |||||
| 22 | 5308068047 | Base Rail |
|
- | |||||
| 23 | 3017031 | Pan-insulation |
|
- | |||||
| 24 | 3017029 | Insulation - Wrap |
|
- | |||||
| 25 | 3017028 | Insulation Back |
|
- | |||||
| 26 | 3051096 | Support,oven Rear |
|
- | |||||
| 28 | 5303051098 | Terminal Block-main |
|
- | |||||
| 31 | 3205593 | Cover-main Back |
|
- | |||||
| 32 | 3205592 | Main - Back |
|
- | |||||
| 33 | 3017030 | Burner Box Bottom |
|
- | |||||
| 34 | 3017034 | Shield-switch |
|
- | |||||
| 35 | 3051064 | Vent Tube |
|
- | |||||
| *24965 | 5301145190 | Strap, Ground |
|
- | |||||
| *24966 | 3131791 | Clip,bodyside |
|
$ 19.01 | |||||
| *24966 | 5300009126 | Clip |
|
- | |||||
| *24966 | 3015722 | Clip-wire Retainer |
|
- | |||||
| *24967 | 3131041 | Bracket-installation (2) |
|
- | |||||
| *24967 | 3205588 | Support-conduit |
|
- | |||||
| 16A | 08007999 | Spacer (non-illustrated) |
|
- |
