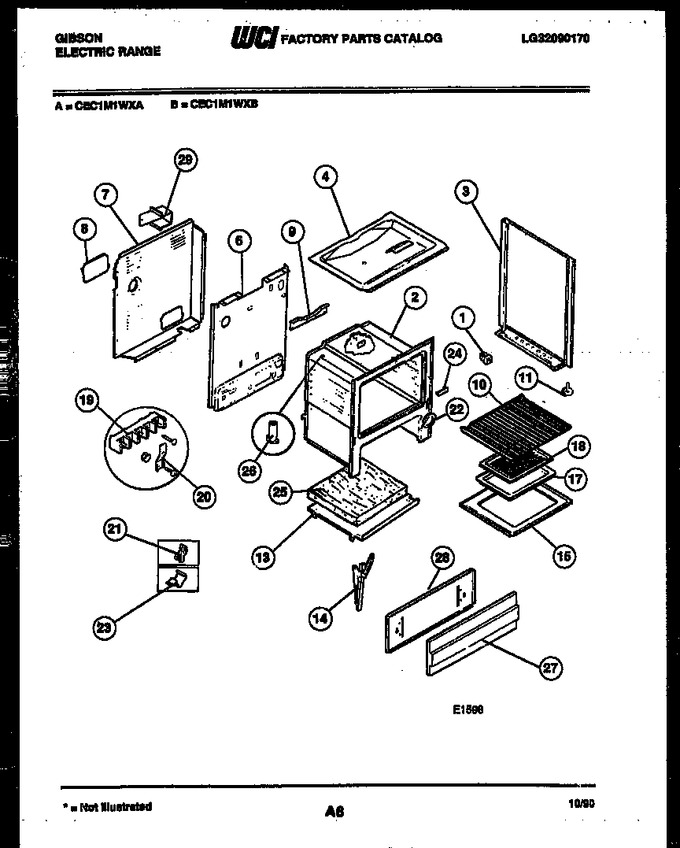

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Backguard
04 - Cooktop And Broiler Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3205620 | Panel Bodyside-lh-white |
|
- | |||||
| 3 | 3205621 | Panel Bodyside-lh-almond |
|
- | |||||
| 3 | 3205623 | Panel Bodyside-rh-white |
|
- | |||||
| 3 | 3205624 | Panel Bodyside-rh-almond |
|
- | |||||
| 4 | 3017926 | Burner Box |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lower Wall |
|
- | |||||
| 8 | 3203405 | Cover-lower Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 5303203397 | Screw-level (4) |
|
$ 14.49 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 5303131569 | Channel-door Hinge (2) |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 17 | 5303013568 | Broiler Pan |
|
- | |||||
| 18 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5303212739 | Ground Strap |
|
- | |||||
| 21 | 5303011805 | Clip-thermal Bulb (2) |
|
- | |||||
| 22 | 3051218 | Plate,oven Light |
|
- | |||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 3015372 | Cover - Front Main |
|
- | |||||
| 25 | 3051390 | Insulation-bottom |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3051202 | Panel-drawer (almd) |
|
- | |||||
| 27 | 3051201 | Panel-drawer (white) |
|
- | |||||
| 28 | 3131975 | Shield-panel |
|
- | |||||
| 29 | 5303206618 | Bracket-range |
|
- | |||||
| *21888 | 08067961 | Fastener-power Cord |
|
- | |||||
| *21888 | 3203550 | Plug-button (2) |
|
Immediately | $ 15.22 | ||||
| 17A | 19100210058 | Diagram-wiring (not For Purchase) (non-illustrated) |
|
- | |||||
| 26A | 3017142 | Insulation, Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 26B | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 26C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 26D | 5303212740 | Screw-hinge Mtg. (6) (non-illustrated) |
|
- | |||||
| 26E | 5303051099 | Nut-hex (6) (non-illustrated) |
|
- | |||||
| 28A | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 28B | 3051387 | Cover-rear Wall (non-illustrated) |
|
- |
