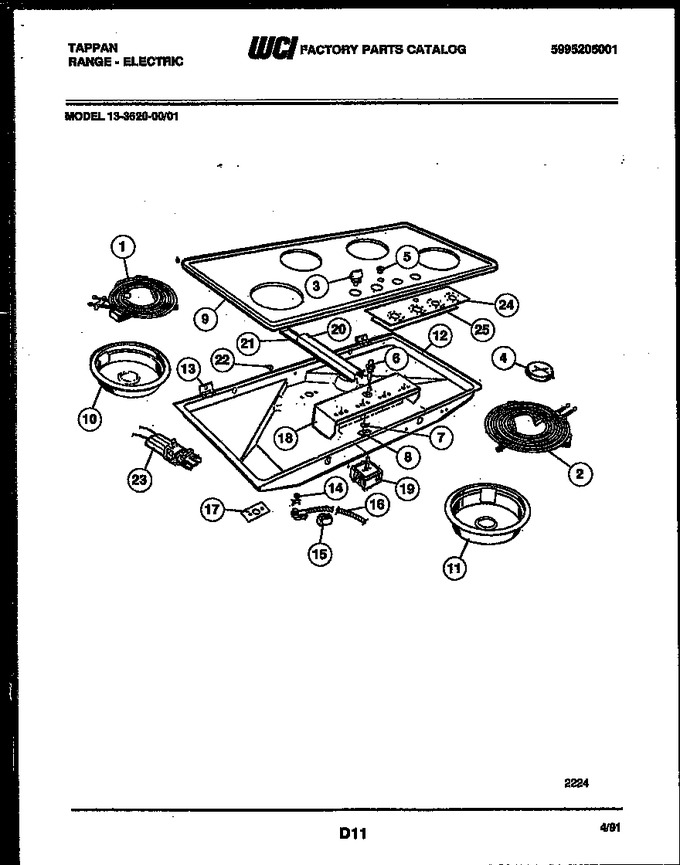

02 - Electric Smooth Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318372210 | Element-small (2) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 2 | 316442300 | Element-large (2) (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 3 | 3051596 | Knob-control (4) |
|
- | |||||
| 4 | 3017801 | Medallion (4) |
|
- | |||||
| 5 | 3016821 | Lens-surface |
|
- | |||||
| 6 | 3051601 | Light-ind-250v |
|
- | |||||
| 7 | 614T024P01 | Seal-indicator Light |
|
- | |||||
| 8 | 241T017P186 | Fastener-ind Light |
|
- | |||||
| 9 | 529T093W04-23 | Panel-main Top-almond |
|
- | |||||
| 10 | 5303013589 | Pan - Element Small (2) |
|
- | |||||
| 11 | 316048413 | Pan-element Large (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 12 | 095T024F03-18 | Burner Box |
|
- | |||||
| 13 | 3017013 | Hinge-main Top Mtg |
|
- | |||||
| 14 | 5308012121 | Insulator-bushing |
|
- | |||||
| 15 | 5301506869 | Connector-conduit |
|
- | |||||
| 16 | 5303207823 | Conduit-cable |
|
- | |||||
| 17 | 554T356F01 | Plate-grounding |
|
- | |||||
| 18 | 311T049F01 | Housing-switch |
|
- | |||||
| 19 | 3204918 | Switch-top Element Small (2) |
|
- | |||||
| 20 | 311L004F01 | Housing-wire Feed |
|
- | |||||
| 21 | 311L005F01 | Housing-bottom |
|
- | |||||
| 22 | 08067733 | Fastener-wire Retainer |
|
- | |||||
| 23 | 5303935058 | Terminal Block (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 24 | 5303272294 | Control Panel |
|
- | |||||
| 25 | 5303207967 | Seal-switch |
|
- | |||||
| *50010 | 5303272293 | Harness-top Elements |
|
- | |||||
| *50010 | 5303272292 | Harness-main |
|
- | |||||
| *50010 | 636T089P22 | Screw-6a X 1/2 Ph Tr Hd-hinge Mtg |
|
- | |||||
| *50010 | 5303013874 | Screw-8ax3/8 Ph Tr Hd-main Top Mtg |
|
$ 5.04 | |||||
| *50011 | 636T096P23 | Screw-8-32 X 3/16 Ph Tr Hd-switch Mtg |
|
- | |||||
| *50011 | 19100290002 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| *50011 | 636T097P08 | Screw-10-24 X 3/8 Ph Tr Hd-plate Mtg |
|
- | |||||
| *50011 | 154079601 | Hex Nut-10-24-plate Mtg (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 19A | 3204919 | Switch-top Element Large (2) |
|
- |
