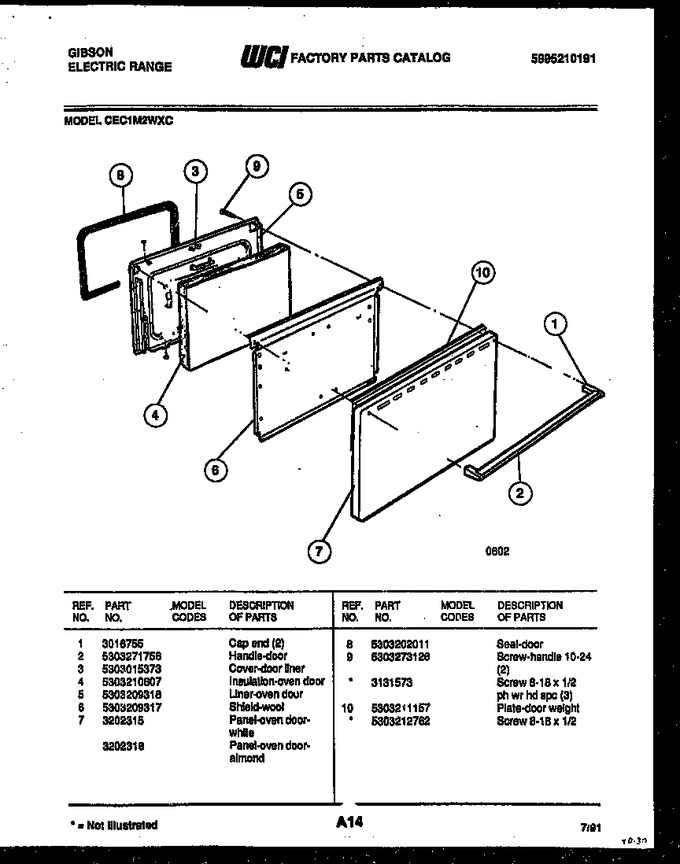

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016755 | Cap, End (2) |
|
- | |||||
| 2 | 5303271756 | Handle-door |
|
- | |||||
| 3 | 5303015373 | Cover-door Liner |
|
- | |||||
| 4 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 5 | 5303209318 | Liner-oven Door |
|
- | |||||
| 6 | 5303209317 | Shield-wool |
|
- | |||||
| 7 | 3202316 | Panel,oven Door ,almond |
|
- | |||||
| 7 | 3202315 | Panel, Oven Door, White |
|
- | |||||
| 8 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 9 | 5303273126 | Screw-handle 10-24 (2) |
|
- | |||||
| 10 | 5303211157 | Plate, Door Weight |
|
- | |||||
| *46773 | 5303212762 | Screw,8-18 X 1/2 |
|
- | |||||
| 9A | 3131573 | Screw 8-18 X 1/2 Ph Wr Hd Spc (3) (non-illustrated) |
|
- |
