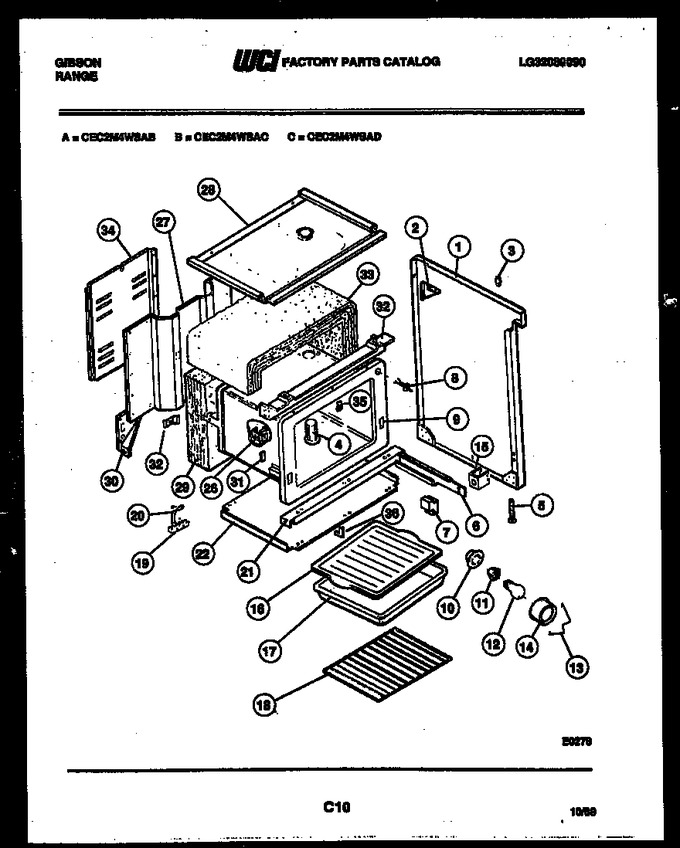

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K5024601 | Side Panel, Rh, White |
|
- | |||||
| 1 | K5024603 | Side Panel Rh-almd |
|
- | |||||
| 1 | K5024602 | Side Panel, Lh, White |
|
- | |||||
| 1 | K5024604 | Side Panel Lh-almd |
|
- | |||||
| 1 | K5024605 | Side Panel-rh, Coffee |
|
- | |||||
| 1 | K5024607 | Side Panel-rh Avoc |
|
- | |||||
| 1 | K5024609 | Side Panel, R.h., Wheat |
|
- | |||||
| 1 | K5024606 | Side Panel-lh, Coffee |
|
- | |||||
| 1 | K5024608 | Side Panel-lh Avoc |
|
- | |||||
| 1 | K5024610 | Side Panel Lh, Wheat |
|
- | |||||
| 2 | K1315230 | Gusset, Backgrd (2) |
|
- | |||||
| 3 | K5106901 | Bumper-cooktop (4) |
|
- | |||||
| 4 | 08012541 | Vent-tube |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 6 | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 7 | K1315216 | Guide-drawer Frnt (2) |
|
- | |||||
| 8 | 3051531 | Switch-oven Light |
|
- | |||||
| 9 | 3206079 | Oven Liner |
|
- | |||||
| 10 | K1325530 | Cup, Oven Light |
|
- | |||||
| 11 | K1325527 | Receptacle Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 08011087 | Retainer - Lens |
|
- | |||||
| 14 | 3051514 | Lens-oven Light |
|
- | |||||
| 15 | K1324860 | Spacer-drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Grill - Broiler |
|
- | |||||
| 17 | 3205232 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack - Oven Regular |
|
- | |||||
| 19 | K1189558 | Terminal, Block |
|
- | |||||
| 20 | K1145190 | Strap-ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 26 | K1311369 | Bracket Thermostat Bulb |
|
- | |||||
| 27 | 3205757 | Back, Range |
|
- | |||||
| 28 | 08012542 | Panel - Subtop |
|
- | |||||
| 29 | 3051522 | Insulation - Oven Back |
|
- | |||||
| 30 | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 32 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 33 | 3051521 | Insulation Wrap |
|
- | |||||
| 34 | 3051856 | Cover - Wire |
|
- | |||||
| 35 | 3202082 | Cover Seam |
|
- | |||||
| 36 | 3019063 | Retainer-door |
|
- | |||||
| *19157 | 3934063 | Anti-tip Kit |
|
- |
