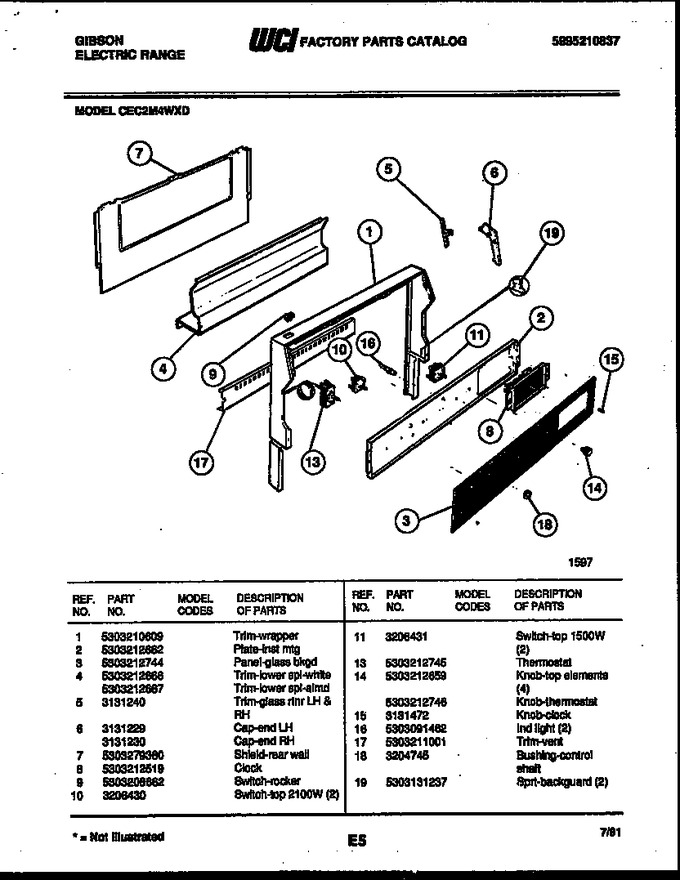

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 2 | 5303212662 | Plate - Inst Mtg |
|
- | |||||
| 3 | 5303212744 | Panel-glass Bkgd. |
|
- | |||||
| 4 | 5303212667 | Trim-lower Spl. (almd) |
|
- | |||||
| 4 | 5303212666 | Trim-lower Spl. (white) |
|
- | |||||
| 5 | 3131240 | Trim-glass Rtnr. Lh & Rh |
|
- | |||||
| 6 | 3131229 | Cap, End (lh) |
|
- | |||||
| 7 | 5303279360 | Shield-rear Wall |
|
- | |||||
| 8 | 5303212519 | Clock |
|
- | |||||
| 9 | 5303208662 | Switch-rocker |
|
- | |||||
| 10 | 3206430 | Switch-top 2100w (2) |
|
- | |||||
| 11 | 3206431 | Switch-top 1500w (2) |
|
- | |||||
| 13 | 5303212745 | Thermostat |
|
- | |||||
| 14 | 5303212659 | Knob-top Elements (4) |
|
- | |||||
| 15 | 3131472 | Knob-clock |
|
- | |||||
| 16 | 5303091462 | Ind. Light (2) |
|
- | |||||
| 17 | 5303211001 | Trim-vent |
|
- | |||||
| 18 | 3204745 | Bushing, Control Shaft |
|
- | |||||
| 19 | 5303131237 | Sprt-backguard (2) |
|
- | |||||
| 14A | 5303212746 | Knob-thermostat |
|
- | |||||
| 6A | 3131230 | Cap, End (rh) |
|
- |
