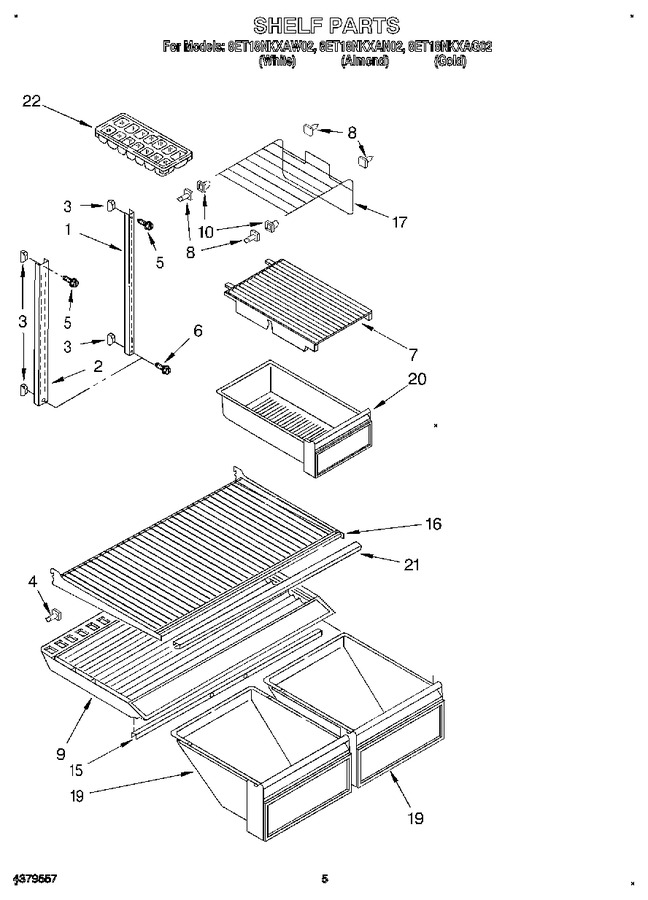

04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 26.87
4	1106612		Shelf Stud (2)				$ 7.56
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1   (Replaces: 488163)				$ 6.79
7	944739		Cover, Meat Pan		Appelez-nous	-
8	946355		Support, Stud		Appelez-nous	-
9	2162599		Crisper Cover		Appelez-nous	-
10	819091		Shelf Stud, L.s. (2)   (Replaces: 946358)				$ 35.71
15	WP2172748		Crisper, Support   (Replaces: 2172750)				$ 87.50
16	2160873		Shelf, Full Cantilever		Appelez-nous	-
17	WPW10401596		Shelf, Freezer   (Replaces: 2163232)				$ 74.05
19	2148977		Pan, Crisper		Appelez-nous	-
20	1124976		Pan, Meat		Appelez-nous	-
21	2148050		Trim, Full Shelf		Appelez-nous	-
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 41.00
