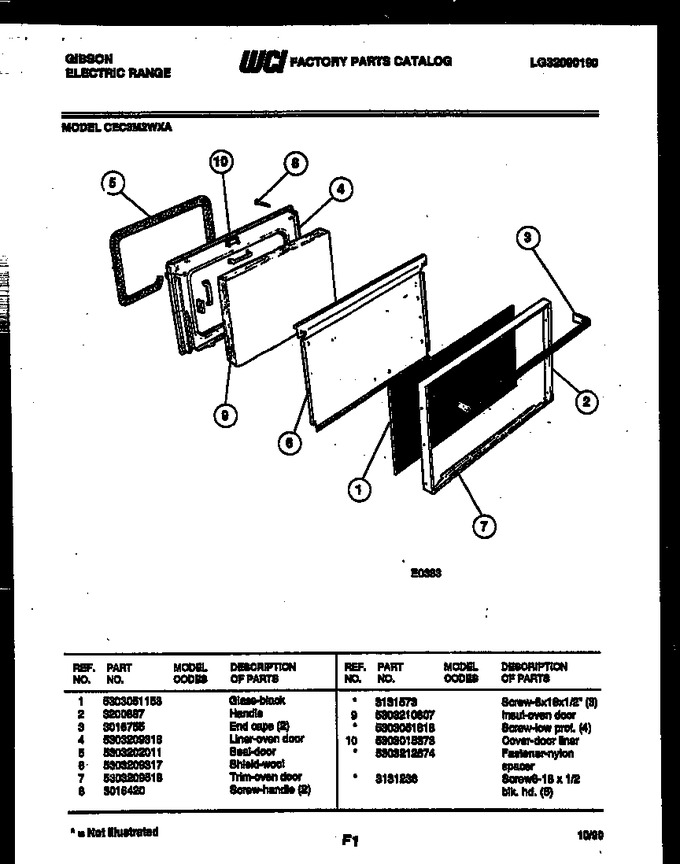

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303051153 | Glass-black |
|
- | |||||
| 2 | 3200887 | Handle |
|
- | |||||
| 3 | 3016755 | End Caps (2) |
|
- | |||||
| 4 | 5303209318 | Liner-oven Door |
|
- | |||||
| 5 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 6 | 5303209317 | Shield-wool |
|
- | |||||
| 7 | 5303209518 | Trim-oven Door |
|
- | |||||
| 8 | 3016420 | Screw - Handle (2) |
|
- | |||||
| 9 | 5303210607 | Insul-oven Door |
|
- | |||||
| 10 | 5303015373 | Cover-door Liner |
|
- | |||||
| *23450 | 3131236 | Screw8-18 X 1/2 Blk. Hd. (5) |
|
- | |||||
| *23450 | 5303212674 | Fastener-nylon Spacer |
|
- | |||||
| 8A | 3131573 | Screw, 8 X 18 X 1/2`` (3) (non-illustrated) |
|
- | |||||
| 9A | 5303051818 | Screw-low Prof. (4) (non-illustrated) |
|
- |
