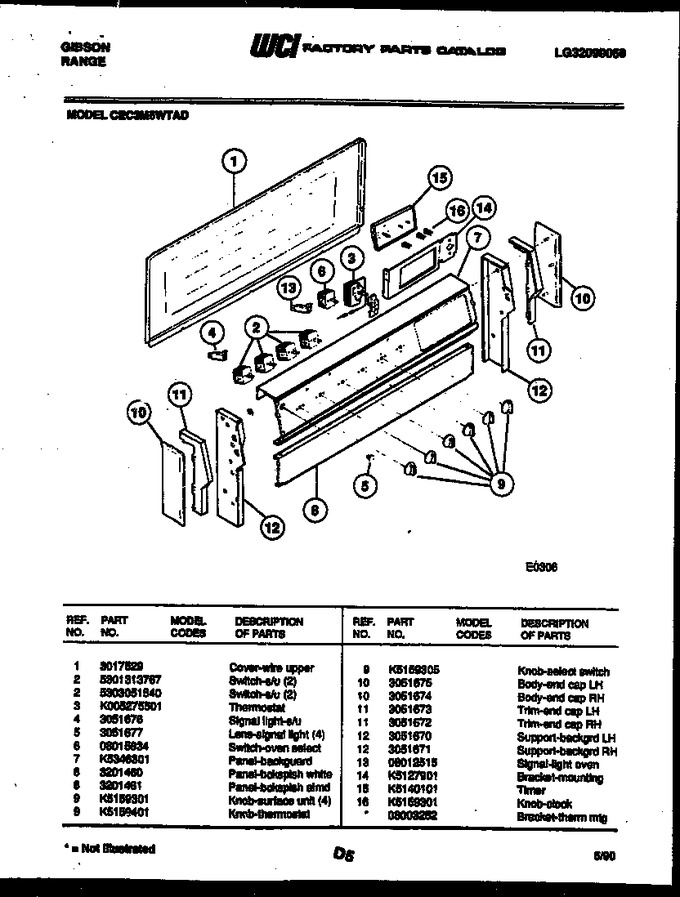

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017529		Cover-wire, Upper		Appelez-nous	-
2	5301313767		Switch - S/u (2)		Appelez-nous	-
2	5303051540		Switch-s/u (2)		Appelez-nous	-
3	K005275501		Thermostat		Appelez-nous	-
4	3051676		Signal Light - S/u		Appelez-nous	-
5	3051677		Lens-signal Light (4)		Appelez-nous	-
6	08015934		Switch-oven Select		Appelez-nous	-
7	K5346301		Panel-background		Appelez-nous	-
8	3201460		Panel-bcksplsh White		Appelez-nous	-
8	3201461		Panel-bcksplsh Almd		Appelez-nous	-
9	K5159301		Knob-surface Unit (4)		Appelez-nous	-
9	K5159305		Knob - Select Switch		Appelez-nous	-
9	K5159401		Knob - Thermostat		Appelez-nous	-
10	3051675		Body-end Cap-l.h.		Appelez-nous	-
10	3051674		Body-end Cap-r.h.		Appelez-nous	-
11	3051673		Trim-end Cap-l.h.		Appelez-nous	-
11	3051672		Trim-end Cap-r.h.		Appelez-nous	-
12	3051671		Support-backgrd Rh		Appelez-nous	-
12	3051670		Support-backgrd Lh		Appelez-nous	-
13	08012515		Signal-light Oven		Appelez-nous	-
14	K5127901		Bracket Mounting		Appelez-nous	-
15	K5140101		Timer		Appelez-nous	-
16	K5159301		Knob-clock		Appelez-nous	-
*26891	08003252		Bracket - Thermostat		Appelez-nous	-
