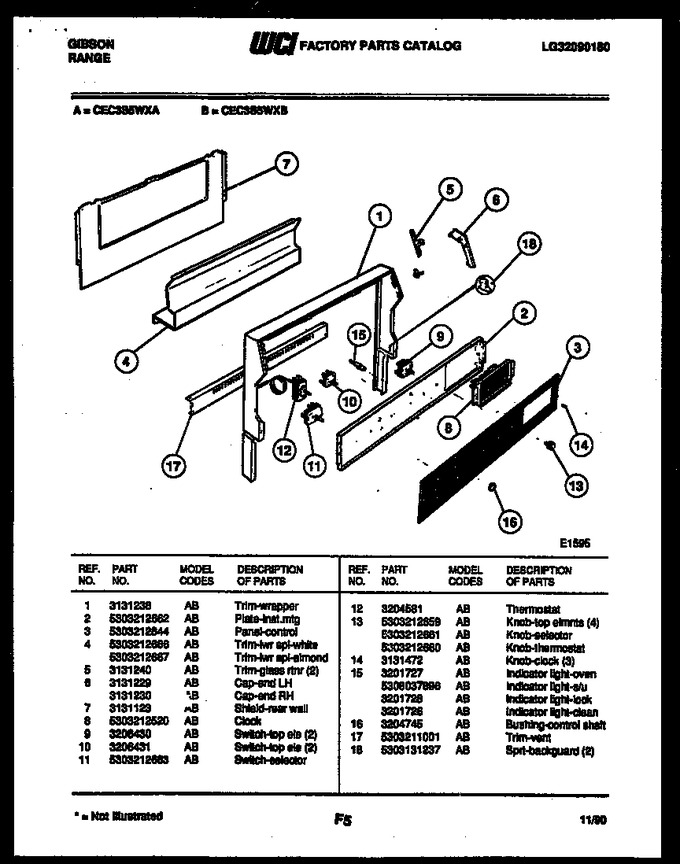

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131238 | Trim, Wrapper |
|
- | |||||
| 2 | 5303212662 | Plate - Inst Mtg |
|
- | |||||
| 3 | 5303212844 | Panel-control |
|
- | |||||
| 4 | 5303212666 | Trim-lwr Spl-white |
|
- | |||||
| 4 | 5303212667 | Trim-lwr Spl-almond |
|
- | |||||
| 5 | 3131240 | Trim-glass Rtnr (2) |
|
- | |||||
| 6 | 3131229 | Cap, End (lh) |
|
- | |||||
| 7 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 8 | 5303212520 | Clock |
|
- | |||||
| 9 | 3206430 | Switch-top Ele (2) |
|
- | |||||
| 10 | 3206431 | Switch-top Ele (2) |
|
- | |||||
| 11 | 5303212663 | Switch-selector |
|
- | |||||
| 12 | 3204581 | Thermostat |
|
- | |||||
| 13 | 5303212659 | Knob-top Elmnts (4) |
|
- | |||||
| 14 | 3131472 | Knob-clock (3) |
|
- | |||||
| 15 | 3201727 | Indicator Light - Oven |
|
- | |||||
| 16 | 3204745 | Bushing, Control Shaft |
|
- | |||||
| 17 | 5303211001 | Trim-vent |
|
- | |||||
| 18 | 5303131237 | Sprt-backguard (2) |
|
- | |||||
| 13A | 5303212661 | Knob-selector |
|
- | |||||
| 13B | 5303212660 | Knob-thermostat |
|
- | |||||
| 15A | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15B | 3201728 | Indicator-light Lock |
|
- | |||||
| 15C | 3201726 | Indicator Light - Clean |
|
- | |||||
| 6A | 3131230 | Cap, End (rh) |
|
- |
