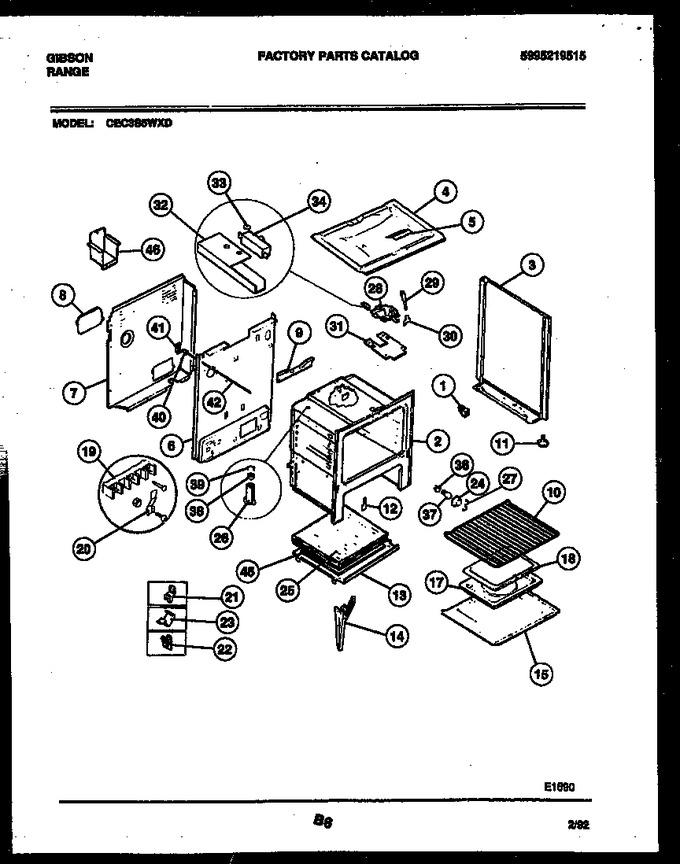

02 - Door Parts


03 - Cooktop Parts


04 - Broiler Parts


05 - Drawer Parts


06 - Body Parts


07 - Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
3	5303269519		Pnl B/s - White Lh		Appelez-nous	-
4	5303271658		Burner Box		Appelez-nous	-
5	08067757		Cover Plate		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203549		Shield-lower Access		Appelez-nous	-
8	3203405		Cover, Lwr. Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	5303131973		Rack, Oven		Appelez-nous	-
11	5303203397		Screw-level (4)				$ 14.49
12	3131570		Cover-hng Cutout				$ 7.35
13	3200825		Shield-wool Lwr		Appelez-nous	-
14	316007001		Channel-dr Hng (2)				$ 234.55
15	3203540		Bottom Oven		Appelez-nous	-
17	5303013568		Broiler Pan		Appelez-nous	-
18	5303131356		Insert-broiler Pan		Appelez-nous	-
19	5304409888		Terminal Block   (Replaces: 5306563359)			Immediately	$ 26.69
20	5303212739		Plate-ground Strap		Appelez-nous	-
21	5303011805		Clip-thermal Bulb		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
25	3200847		Insulation, Lower		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3204585		Wire-glass Rtnr (2)		Appelez-nous	-
27	3131304		Insulation-top (non-illustrated)		Appelez-nous	-
28	5303015361		Latch-door		Appelez-nous	-
29	5303131357		Handle-latch				$ 37.33
30	3203218		Knob-latch		Appelez-nous	-
31	3131593		Shield-latch		Appelez-nous	-
32	3051413		Shield-bi Metal Latch		Appelez-nous	-
33	08067776		Fstnr., Push On (3)		Appelez-nous	-
34	3131672		Switch, Latching		Appelez-nous	-
36	3014073		Socket-oven Light		Appelez-nous	-
37	5303208582		Light Bulb, Oven		Appelez-nous	-
38	08067810		Filter-catalyst		Appelez-nous	-
39	08010606		Retainer-catalyst		Appelez-nous	-
40	5303202622		Switch, Door		Appelez-nous	-
41	5303131289		Bracket-light Sw		Appelez-nous	-
42	5303209316		Rod Light		Appelez-nous	-
45	3200848		Shield,heat ,lower		Appelez-nous	-
46	3203582		Shield-rear Wall		Appelez-nous	-
*47918	3934056		Anti-tip Kit		Appelez-nous	-
*47919	3203550		Plug-button			Immediately	$ 15.22
*47919	5303206618		Bracket-cable Mtg		Appelez-nous	-
*47919	19100210010		Diagram Wiring (not For Purchase)		Appelez-nous	-
26A	19100210010		Diagram Wiring (not For Purchase) (non-illustrated)		Appelez-nous	-
27B	3204582		Insulation-back (non-illustrated)		Appelez-nous	-
27C	3131903		Bumper				$ 55.36
30A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
3A	5303269518		Pnl B/s - White Rh		Appelez-nous	-
3A	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
45A	3200833		Insulation-wrap (non-illustrated)		Appelez-nous	-
45B	3200834		Shield-heat B/s (2) (non-illustrated)		Appelez-nous	-
45C	3200846		Fstnr - Edge Mtg (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
