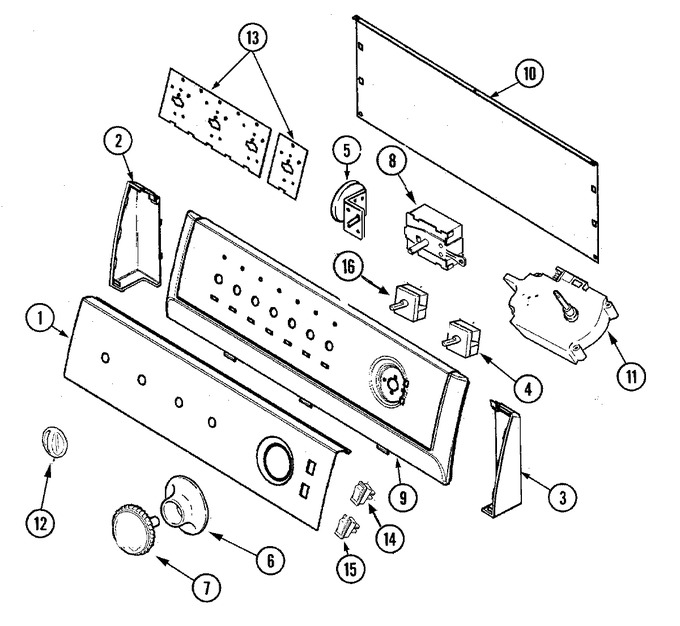

01 - Base
02 - Cabinet
03 - Control Panel
04 - Supplemental Information
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 21002044 | Panel, Control / Facia | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 3 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 31001397 | Buzzer | 10 |
|
- | ||||
| 5 | 21001882 | Switch, Pressure (emz) | 10 |
|
- | ||||
| 6 | 21001520 | Skirt, Timer Knob (wht) | 10 |
|
- | ||||
| 7 | 21001526 | Knob, Timer (wht) | 10 |
|
$ 24.05 | ||||
| 8 | 21001226 | Switch, Water Temp. 4 Position | 10 |
|
- | ||||
| 9 | 21001552 | Frame (wht), Control Panel | 10 |
|
- | ||||
| 10 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 11 | 21001929 | Timer | 10 |
|
$ 207.26 | ||||
| 12 | 21001544 | Knob, Selector (wht) | 10 |
|
- | ||||
| 13 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 13 | 21001603 | Shield, Control (3 Pos.) | 10 |
|
- | ||||
| 14 | 21001482 | Switch, Momentary (wht) | 10 |
|
- | ||||
| 15 | 21001813 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 16 | 21001673 | Switch, Speed 4 Pos Rotary | 10 |
|
- | ||||
| NI | 21001978 | Lead Assembly (ground) | 10 |
|
- | ||||
| NI | 21001979 | Lead Assembly (dr Switch) | 10 |
|
- | ||||
| NI | 21002025 | Harness, Wiring | 10 |
|
- | ||||
| NI | 21001592 | Cord, Power | 10 |
|
- |
