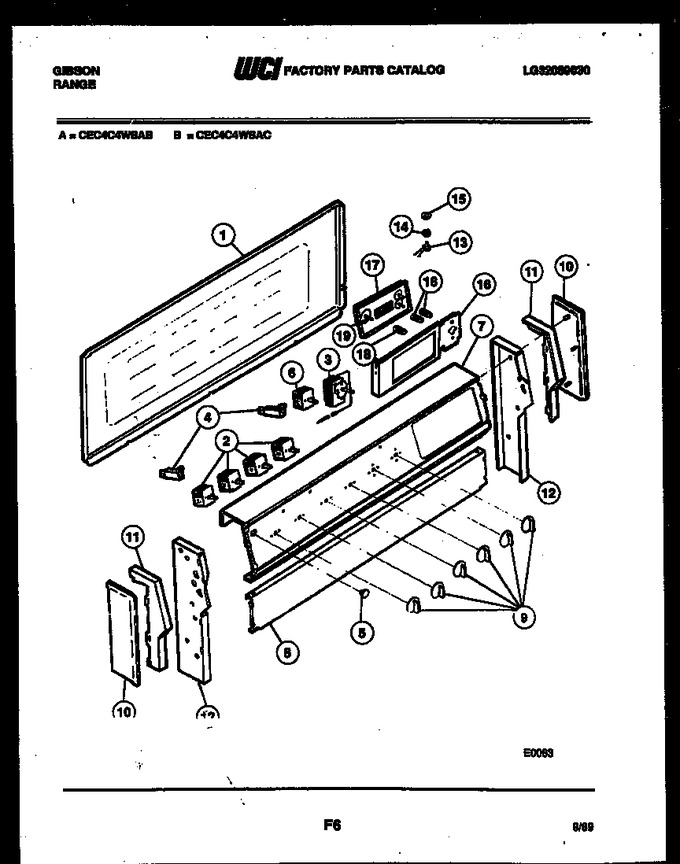

02 - Backguard


03 - Door Parts


04 - Cooktop Parts


05 - Broiler Parts


06 - Drawer Parts


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017529		Cover-wire		Appelez-nous	-
2	3051540		Switch - S/u Small (2)		Appelez-nous	-
3	08005306		Thermostat		Appelez-nous	-
4	3051676		Signal-light Surface Unit & Clean (2)		Appelez-nous	-
4	3051678		Signal Light-oven		Appelez-nous	-
5	3051677		Lens - Signal Light (2)		Appelez-nous	-
6	08016480		Switch - Oven Select		Appelez-nous	-
7	K5140002		Panel - Backguard		Appelez-nous	-
8	3201460		Panel - Backsplash (white)		Appelez-nous	-
8	K5137606		Panel Backsplash, Almond		Appelez-nous	-
8	K5137605		Panel Backsplash, Wheat		Appelez-nous	-
9	K5159301		Knob-surface Unit (4)		Appelez-nous	-
9	K5159302		Knob - Select Switch		Appelez-nous	-
10	3051675		Body-end Cap-l.h.		Appelez-nous	-
11	3051673		Trim-end Cap-l.h.		Appelez-nous	-
12	3051670		Supt - Backguard Lh		Appelez-nous	-
13	3205397		Switch, Oven Light		Appelez-nous	-
14	3051832		Nut - Hex Flat		Appelez-nous	-
15	08012572		Nut-knurled		Appelez-nous	-
16	3051686		Bracket-mounting		Appelez-nous	-
17	K5140401		Timer		Appelez-nous	-
18	3016387		Knob - Clock		Appelez-nous	-
19	K001167549		Glass-clock		Appelez-nous	-
10A	3051674		Body-end Cap-r.h.		Appelez-nous	-
11A	3051672		Trim-end Cap-r.h.		Appelez-nous	-
12A	3051671		Supt - Backguard Rh		Appelez-nous	-
2A	K001313767		Switch - S/u Large (2)		Appelez-nous	-
9A	K5159401		Knob - Thermostat		Appelez-nous	-
