New Model Search:

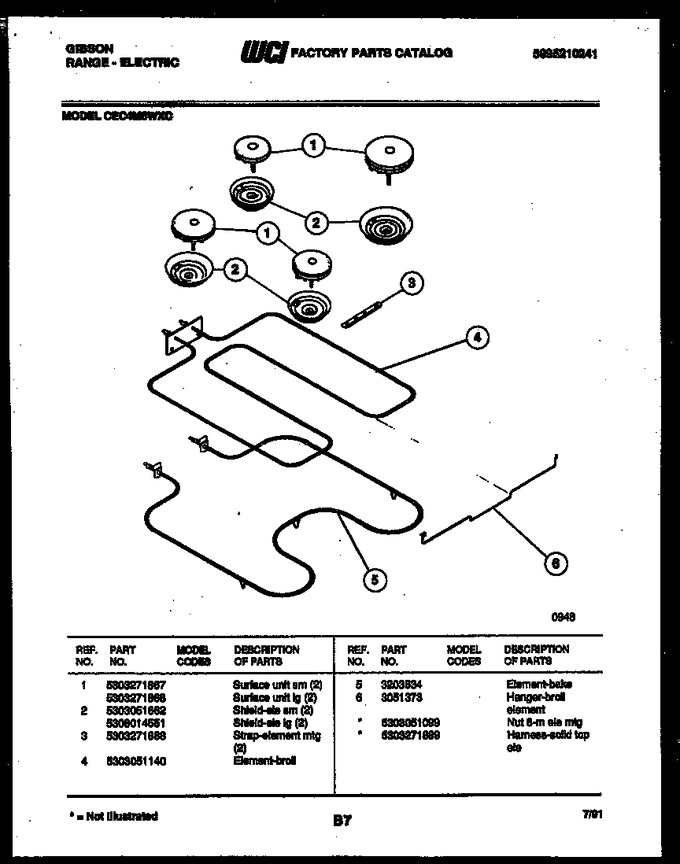

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271867 | Surface Unit-sm (2) |
|
- | |||||
| 2 | 5303051662 | Shield-ele Sm (2) |
|
- | |||||
| 3 | 5303271888 | Strap-element Mtg (2) |
|
- | |||||
| 4 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 5 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 6 | 3051373 | Hanger-broil Element |
|
- | |||||
| *35076 | 5303051099 | Nut 6-m Ele Mtg |
|
- | |||||
| *35077 | 5303271889 | Harness-solid Top Ele |
|
- | |||||
| 1A | 5303271868 | Surface Unit Lg (2) |
|
- | |||||
| 2A | 5308014551 | Shield-ele Lg (2) |
|
- |
