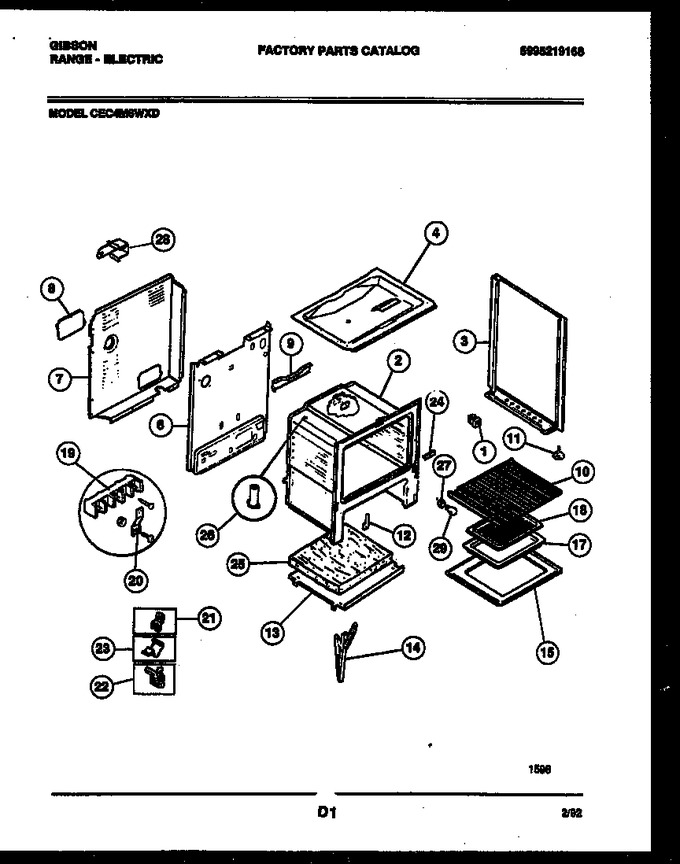

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 3 | 5303269519 | Panel-side Lh-white |
|
- | |||||
| 4 | 5303271899 | Burner Box |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-low Wall |
|
- | |||||
| 8 | 3203405 | Cover-low Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 3206285 | Screw-level (4) |
|
- | |||||
| 12 | 3131570 | Cover-hinge (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 316007001 | Channel-hinge (2) |
|
$ 234.55 | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 17 | 5303013568 | Broiler Pan |
|
- | |||||
| 18 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5303212739 | Ground Strap |
|
- | |||||
| 21 | 5303011805 | Clip-thermal (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3205821 | Clip-spring (Replaces: 3051124) |
|
Immediately | $ 35.44 | ||||
| 24 | 5303015372 | Cover-front |
|
- | |||||
| 25 | 3051390 | Insulation-bottom |
|
- | |||||
| 26 | 5303271871 | Tube-oven Vent |
|
- | |||||
| 27 | 3014073 | Socket-ov Lt |
|
- | |||||
| 28 | 3203582 | Shield-rear Wall |
|
- | |||||
| 29 | 5303208582 | Light Bulb |
|
- | |||||
| *58206 | 3203541 | Insulation-back |
|
- | |||||
| *58206 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *58206 | 5303280311 | Screw-hinge |
|
$ 6.62 | |||||
| *58206 | 5303051099 | Nut-hex-brass (6) |
|
- | |||||
| *58206 | 3017142 | Insulation-wrap |
|
$ 193.50 | |||||
| *58207 | 3203550 | Plug-button (2) |
|
Immediately | $ 15.22 | ||||
| *58207 | 19100210071 | Wiring Diagram-(not For Purchase.) |
|
- | |||||
| *58207 | 5303271873 | Shield, Vent Tube |
|
- | |||||
| *58207 | 5303271872 | Tube-vent Upper |
|
- | |||||
| *58207 | 3131252 | Shield, Lower Rear Wall |
|
- | |||||
| *58207 | 3934056 | Anti-tip Kit |
|
- | |||||
| *58207 | 5303206618 | Bracket-cable Mtg |
|
- | |||||
| 3A | 5303269518 | Panel-side Rh-white |
|
- | |||||
| 3A | 5303269543 | Panel-bodyside Rh (almond) |
|
- |
