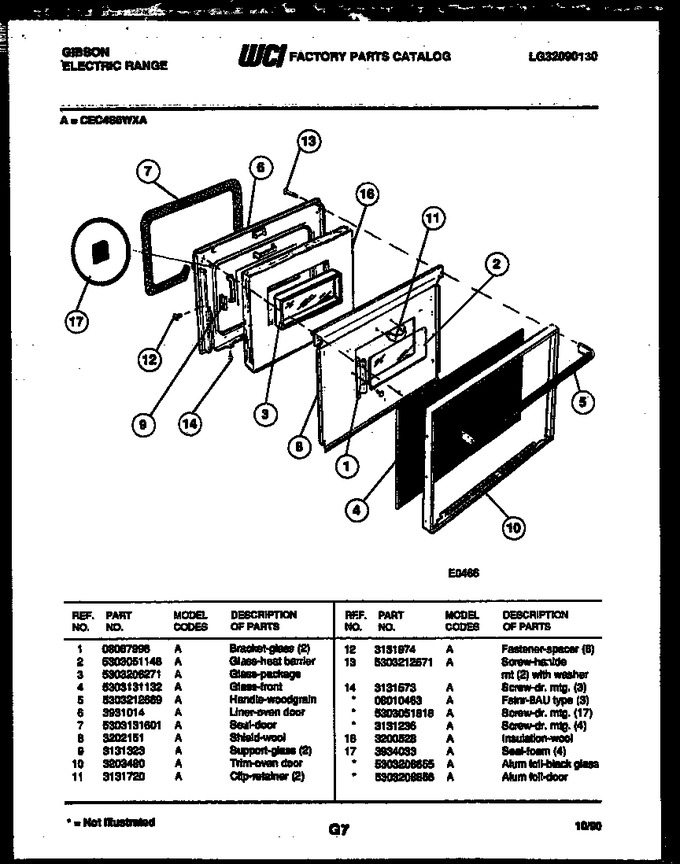

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08067996 | Bracket-glass (2) |
|
- | |||||
| 2 | 5303051148 | Glass, Heat Barrier |
|
- | |||||
| 3 | 5303206271 | Glass Package |
|
- | |||||
| 4 | 5303131132 | Glass, Front |
|
- | |||||
| 5 | 5303212669 | Handle-woodgrain |
|
- | |||||
| 6 | 3931014 | Liner-oven Door |
|
- | |||||
| 7 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 8 | 3202151 | Shield, Wool |
|
- | |||||
| 9 | 3131323 | Support, Glass (2) |
|
- | |||||
| 10 | 3203480 | Trim, Oven Door |
|
- | |||||
| 11 | 3131720 | Clip, Retainer (2) |
|
- | |||||
| 12 | 3131974 | Fastener, Spacer (6) |
|
- | |||||
| 13 | 5303212671 | Screw-handle Mt (2) With Washer |
|
- | |||||
| 14 | 3131573 | Screw-dr. Mtg. (3) |
|
- | |||||
| 16 | 3200528 | Insulation-wool |
|
- | |||||
| 17 | 3934033 | Seal, Foam (4) |
|
- | |||||
| *28173 | 5303208655 | Alum Foil-black Glass |
|
- | |||||
| *28174 | 5303208656 | Alum Foil-door |
|
- | |||||
| 14A | 08010463 | Fastener-clip |
|
- | |||||
| 14B | 5303051818 | Screw-dr Mtg (17) (non-illustrated) |
|
- | |||||
| 14C | 3131236 | Screw-dr Mtg (4) (non-illustrated) |
|
- |
