New Model Search:

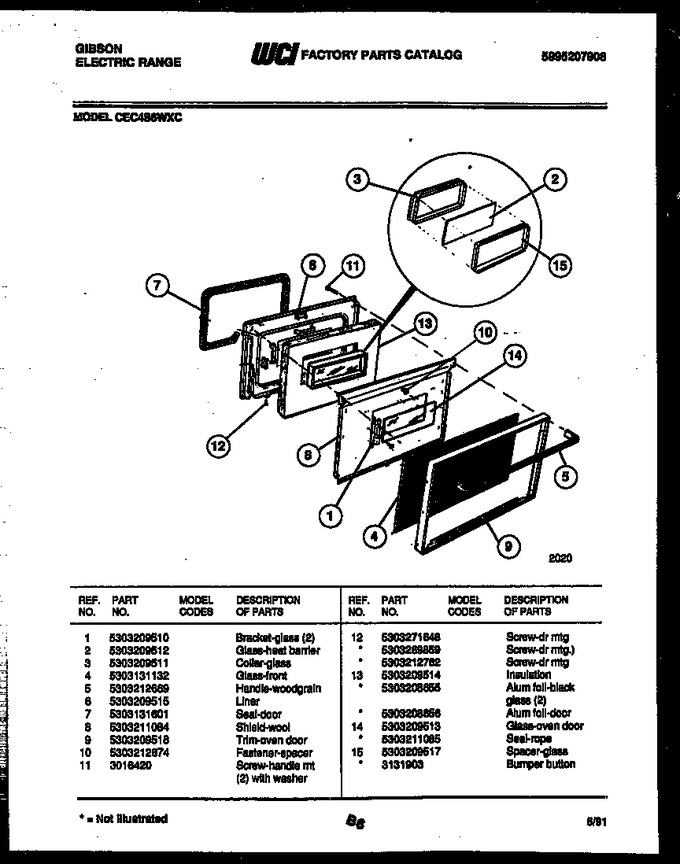

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209510 | Bracket-glass (2) |
|
- | |||||
| 2 | 5303209512 | Glass-heat Barrier |
|
$ 150.41 | |||||
| 3 | 5303209511 | Collar-glass |
|
- | |||||
| 4 | 5303131132 | Glass, Front |
|
- | |||||
| 5 | 5303212669 | Handle-woodgrain |
|
- | |||||
| 6 | 5303209515 | Liner |
|
- | |||||
| 7 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 8 | 5303211084 | Shield-wool |
|
- | |||||
| 9 | 5303209518 | Trim-oven Door |
|
- | |||||
| 10 | 5303212674 | Fastener-spacer |
|
- | |||||
| 11 | 3016420 | Screw-handle Mt (2) With Washer |
|
- | |||||
| 12 | 5303271648 | Screw-dr Mtg |
|
Immediately | $ 13.46 | ||||
| 13 | 5303209514 | Insulation |
|
- | |||||
| 14 | 5303209513 | Glass Oven Door |
|
- | |||||
| 15 | 5303209517 | Spacer-glass |
|
- | |||||
| *37801 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 12A | 5303212762 | Screw-dr Mtg (non-illustrated) |
|
- | |||||
| 12A | 5303269859 | Screw-dr Mtg. (non-illustrated) |
|
- | |||||
| 13A | 5303208655 | Alum Foil-black Glass (2) (non-illustrated) |
|
- | |||||
| 13B | 5303208656 | Alum Foil-door (non-illustrated) |
|
- | |||||
| 14A | 5303211085 | Seal-rope (non-illustrated) |
|
$ 44.00 |
