Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303209510 Bracket-glass (2) Appelez-nous -
2 5303209513 Glass Oven Door Appelez-nous -
3 5303209512 Glass Heat Barrier (2) Special Order $ 150.41

4 5303209517 Spacer-glass Appelez-nous -
5 5303209511 Collar-glass Appelez-nous -
6 5303131132 Glass-front Visulite Appelez-nous -
7 5303212669 Handle Appelez-nous -
8 5303209515 Liner Appelez-nous -
9 5303131601 Seal, Door Special Order $ 374.63

10 5303211084 Shield-wool Appelez-nous -
11 5303209518 Trim-oven Door Appelez-nous -
12 3016420 Screw, Handle Appelez-nous -
13 3131573 Screw 8-18 X 1/2 Blk Appelez-nous -
14 5303209514 Insulation-wool Appelez-nous -
15 5303211085 Seal-rope Special Order $ 44.00

*43088 5303208655 Foil-alum Blk Appelez-nous -
*43088 5303212674 Fastener-spacer (1) Appelez-nous -
*43088 3131236 Screw 8-18 X 1/2 Ph Appelez-nous -
*43088 5303051818 Screw 8-18 X 1/2 Low Profile Appelez-nous -
*43089 5303208656 Foil-alum Blk Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

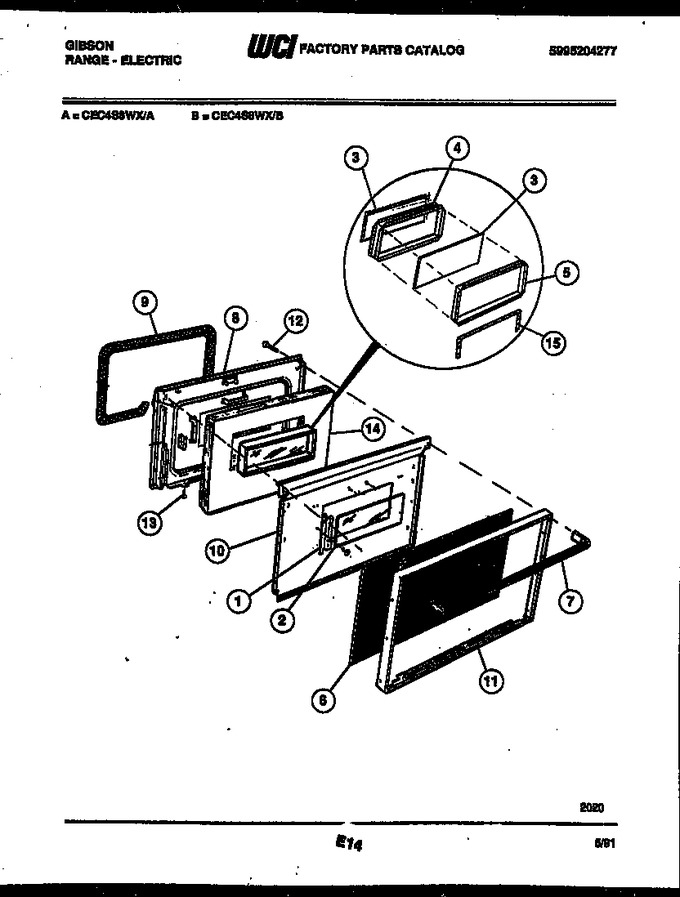

Diagram for CEC4S8WXA
