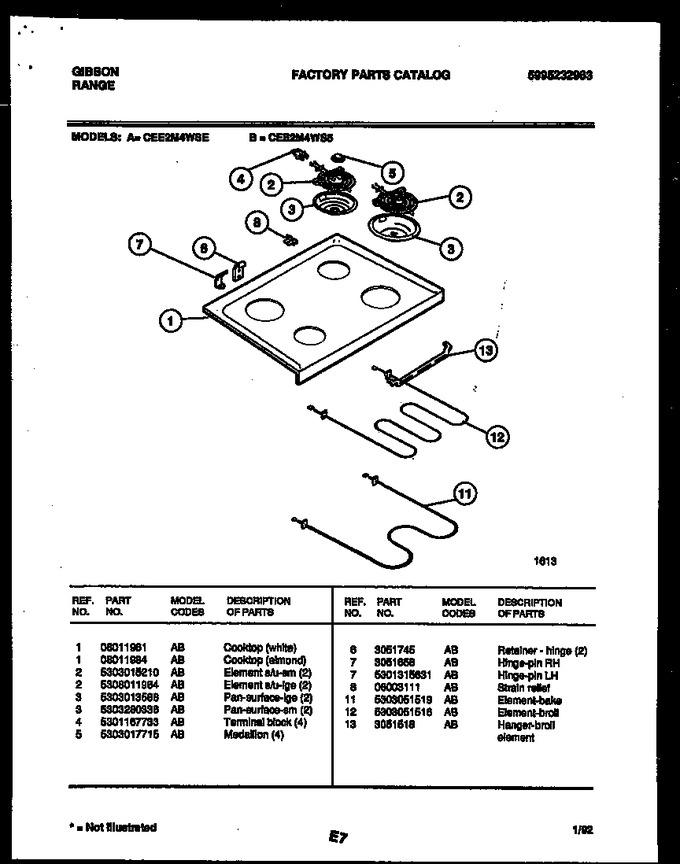

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011961 | Cooktop (white) |
|
- | |||||
| 1 | 08011984 | Cooktop (almond) |
|
- | |||||
| 2 | 5303015210 | Element S/u - Sm (2) |
|
- | |||||
| 2 | 5308011964 | Element - S/u Lge (2) |
|
$ 209.08 | |||||
| 3 | 316048413 | Pan, Surface, Lge (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 3 | 316048414 | Pan, Surface, Sm (2) (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 4 | 5303935058 | Terminal Block (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 5 | 5303017715 | Medallion (4) |
|
$ 64.46 | |||||
| 6 | 3051745 | Retainer Hinge (2) |
|
- | |||||
| 7 | 5301315631 | Hinge-pin Lh |
|
- | |||||
| 7 | 3051658 | Hinge-pin Rh |
|
- | |||||
| 8 | 08003111 | Strain Relief |
|
- | |||||
| 11 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 12 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 13 | 3051518 | Hanger, Broil Element |
|
- |
