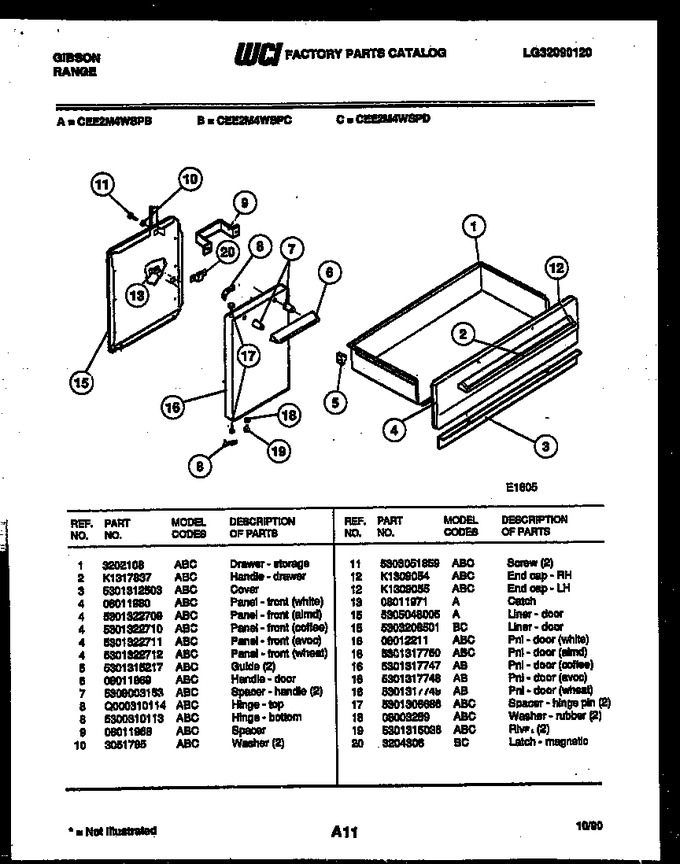

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer, Storage		Appelez-nous	-
2	K1317837		Handle - Drawer		Appelez-nous	-
3	5301312503		Cover		Appelez-nous	-
4	5301322712		Panel-front-wheat		Appelez-nous	-
4	5301322711		Panel - Front (avoc)		Appelez-nous	-
4	5301322710		Panel - Front (coffee)		Appelez-nous	-
4	5301322709		Panel - Front (almd)		Appelez-nous	-
4	08011980		Panel - Front (white)		Appelez-nous	-
5	5301315217		Guide (2)		Appelez-nous	-
6	08011969		Handle, Door		Appelez-nous	-
7	5308003153		Spacer-handle, (2)		Appelez-nous	-
8	5300310113		Hinge, Bottom		Appelez-nous	-
8	Q000310114		Hinge Top		Appelez-nous	-
9	08011968		Spacer		Appelez-nous	-
10	3051785		Washer (2)		Appelez-nous	-
11	5303051859		Screw (2)		Appelez-nous	-
12	K1309054		End Cap - Rh		Appelez-nous	-
12	K1309055		End Cap - Lh		Appelez-nous	-
15	5303208501		Liner - Door		Appelez-nous	-
16	5301317750		Pnl - Door (almd)		Appelez-nous	-
16	08012211		Pnl - Door (white)		Appelez-nous	-
17	5301306686		Spacer-hinge Pin (2)		Appelez-nous	-
18	08003259		Washer-rubber (2)		Appelez-nous	-
19	5301315036		Rivet (2)		Appelez-nous	-
20	3204306		Latch-magnetic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
