SELECT A DIAGRAM

01 - Cover

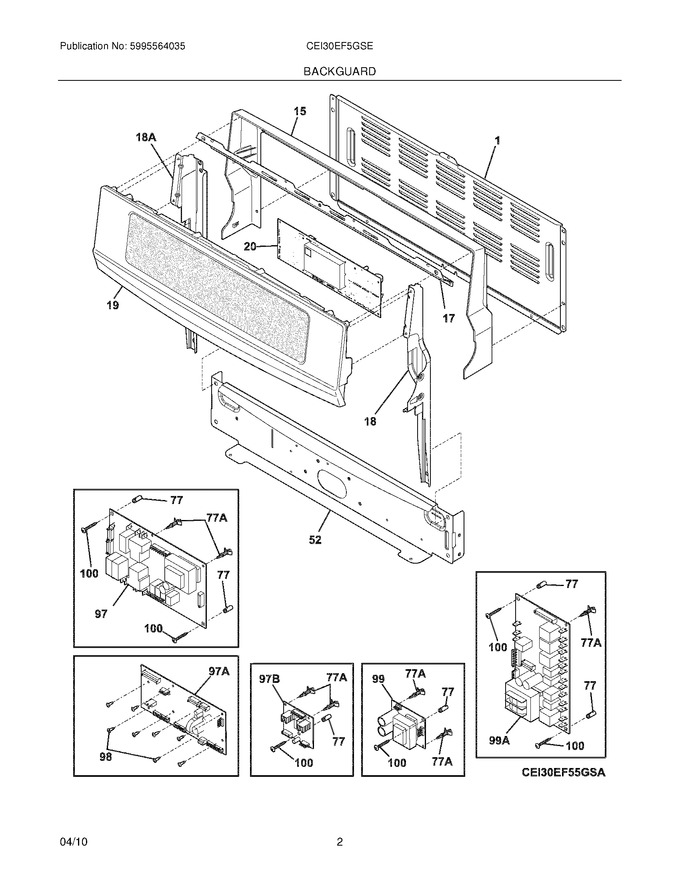

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316500100		Shield,rear Wall		Appelez-nous	-
15	316500401		Wrapper,backguard ,black				$ 148.94
17	316500301		Shield,upper ,backguard		Appelez-nous	-
18	316526000		Channel,support ,rh ,backguard		Appelez-nous	-
52	316509803		Shield,backguard ,black ,inner		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
98	316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)				$ 12.02
100	5303289910		Screw,8a ,1``				$ 5.67
18A	316526001		Channel,support ,lh ,backguard		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F19	316538415		Control Panel Assembly,user Interface ,w/ss Trim				$ 3,119.18
F20	316516513		Controller,electronic ,es630b		Appelez-nous	-
F97	316443920		Board,relay ,oven Control			Immediately	$ 403.75
F97A	316576413		Board,power ,uib				$ 325.08
F97B	316519200		Board,variable Speed			Immediately	$ 256.24
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
F99A	316442118		Board,power ,relay				$ 397.95
FNI	316525635		Harness-wiring,segmnt Interfac		Appelez-nous	-
FNI	316525601		Harness,wiring ,control To ,relay Board				$ 140.02
FNI	316525610		Harness,wiring ,relay Board To ,user Interface				$ 221.41
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316525500		Screw,blunt Pnt Ph B ,8-18 X .875 ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
