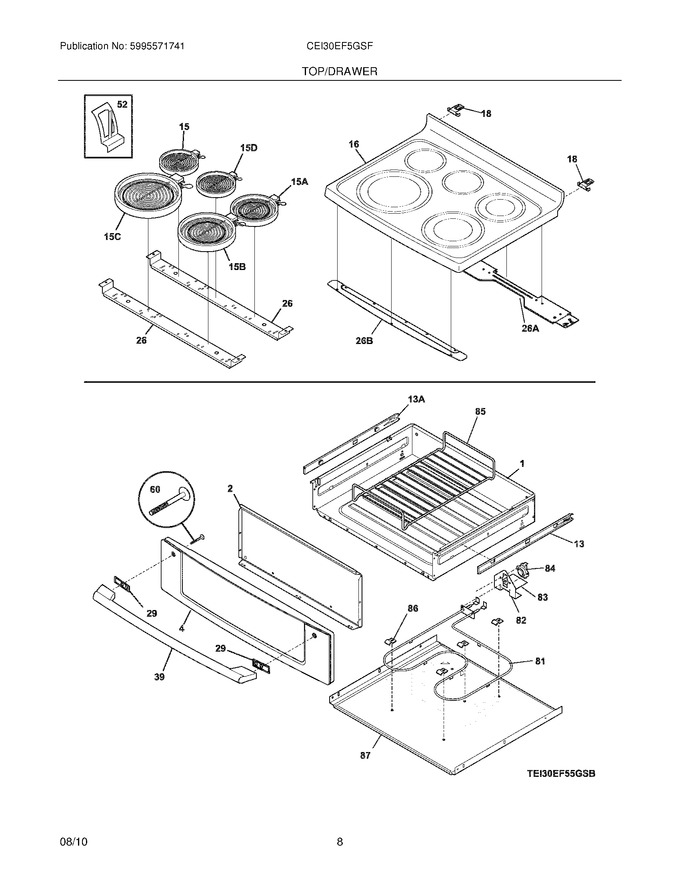

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408902 | Drawer,warmer |
|
$ 130.46 | |||||
| 2 | 316501801 | Liner,drawer ,warmer |
|
- | |||||
| 4 | 316517106 | Panel Assembly,drawer Glass ,outer ,w/trim & Tape |
|
$ 258.14 | |||||
| 13 | 316415000 | Glide,warmer ,inner Rh (Replaces: 316415002) |
|
$ 58.82 | |||||
| 16 | 316470628 | Main Top Assembly,glass/steel ,black |
|
$ 499.12 | |||||
| 18 | 316436600 | Hinge Bracket,maintop ,(2) |
|
$ 45.36 | |||||
| 26 | 316427602 | Channel,element Support ,(2) |
|
- | |||||
| 29 | 316505401 | Spacer,handle ,gray ,(2) |
|
$ 18.17 | |||||
| 39 | 241881301 | Handle,door ,stainless |
|
$ 170.06 | |||||
| 52 | 316461700 | Clip,element Mtg |
|
$ 12.05 | |||||
| 60 | 5304507924 | Screw,handle Mtg ,10-24 X 2.188 ,(2) (Replaces: 316513301) |
|
Immediately | $ 16.48 | ||||
| 82 | 316093200 | Bracket,element Mtg |
|
- | |||||
| 83 | 316093300 | Shield,terminal ,warmer Drawer |
|
- | |||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 316425900) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 316091900 | Base,warmer Drawer |
|
$ 221.55 | |||||
| 13A | 316415001 | Glide,warmer ,inner Lh |
|
Immediately | $ 58.82 | ||||
| 26A | 316498200 | Bracket-support,chassis ,aluminum |
|
$ 52.33 | |||||
| 26B | 316501501 | Bracket,chassis Support ,front |
|
$ 15.33 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200 ,(2) ,radiant |
|
Immediately | $ 122.86 | ||||
| F15A | 318198952 | Element,surface ,750/1800w ,dual Radiant (Replaces: 318198936) |
|
Immediately | $ 250.90 | ||||
| F15B | 5304533520 | Element-dual,9/6`` ,surface ,3000w ,radiant (Replaces: 316282000) |
|
Immediately | $ 90.14 | ||||
| F15C | 316282100 | Element Surface Dual,surface ,1700/2700w,dual Radiant |
|
Immediately | $ 249.27 | ||||
| F15D | 140273621015 | Element,surface ,warmer ,100 W (Replaces: 318198832) |
|
Immediately | $ 35.77 | ||||
| F81 | 316437300 | Element,warmer Drawer |
|
$ 106.17 | |||||
| F84 | 316093502 | Thermo Disc,warmer Drawer |
|
$ 51.03 | |||||
| FNI | 5304516184 | Harness,warm Base (Replaces: 316525623) |
|
$ 28.51 | |||||
| FNI | 316510667 | Harness-wiring,surface |
|
$ 205.59 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316468100 | Cleaner,smoothtop ,w/sponge |
|
$ 4.88 | |||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
