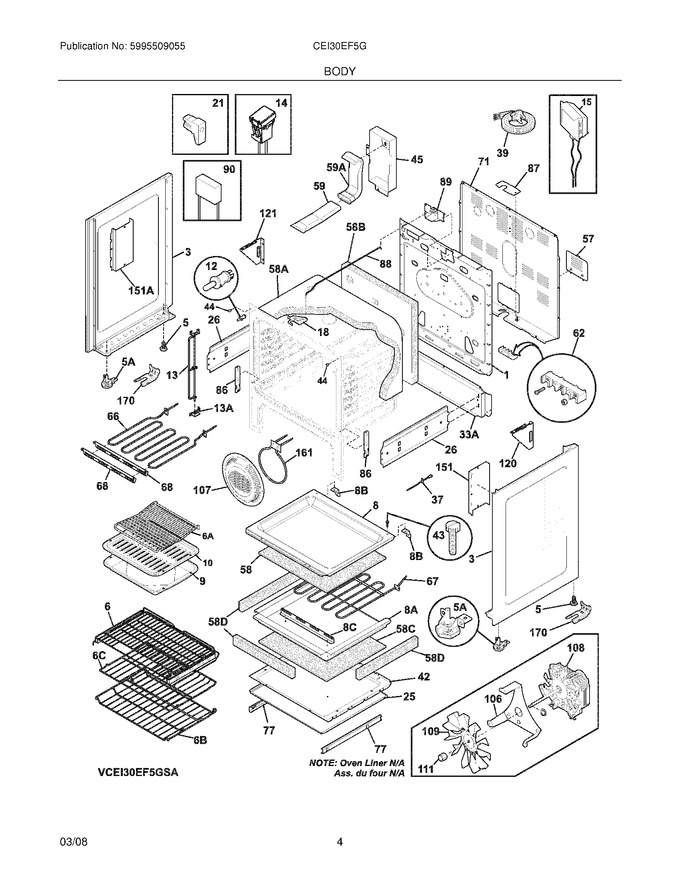

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316502000 | Back,main |
|
- | |||||
| 3 | 316400142 | Panel,bodyside ,white ,rh (Replaces: 316400116) |
|
$ 140.85 | |||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316571800 | Rack Assembly,w/glides (Replaces: 316508200) |
|
$ 290.93 | |||||
| 8 | 316505602 | Panel,cobalt ,oven Bottom |
|
$ 158.06 | |||||
| 9 | 318138801 | Pan,broiler |
|
- | |||||
| 10 | 318126401 | Insert,broiler Pan |
|
- | |||||
| 13 | 316528901 | Lever Assembly,rack Sensing |
|
- | |||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 25 | 316505900 | Shield,lower ,bake |
|
- | |||||
| 26 | 316409000 | Shield,warmer Side ,(2) |
|
$ 44.47 | |||||
| 39 | 318113108 | Cord,electric |
|
- | |||||
| 42 | 316407700 | Shield,wool ,lower |
|
$ 131.19 | |||||
| 43 | 75303285179 | Screw,wafer Head ,8-32t X 0.500 ,black |
|
- | |||||
| 44 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 45 | 316509900 | Shield,vent Tube |
|
- | |||||
| 57 | 316457801 | Cover,access |
|
$ 12.89 | |||||
| 58 | 316509500 | Insulation,bake Element |
|
$ 45.09 | |||||
| 59 | 316208402 | Vent Tube,assembly ,w/catalyst |
|
$ 38.27 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 68 | 316506401 | Support,broil Element ,(2) |
|
- | |||||
| 71 | 316422304 | Shield,rear Wall |
|
$ 115.53 | |||||
| 77 | 316456700 | Glide,warmer Drawer ,outer/rh & Lh ,(2) |
|
Immediately | $ 60.96 | ||||
| 86 | 316580700 | Receptacle,hinge ,(2) (Replaces: 316508600) |
|
Immediately | $ 30.47 | ||||
| 87 | 316081202 | Bracket,cable Mtg |
|
$ 4.96 | |||||
| 88 | 316203500 | Rod,auto Latch |
|
$ 72.30 | |||||
| 106 | 316404100 | Bracket,motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026702 | Cover,fan |
|
$ 67.94 | |||||
| 109 | 318398302 | Blade,fan (Replaces: 316136400) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 120 | 316279202 | Bracket,stiffener ,rh |
|
- | |||||
| 121 | 316279203 | Bracket,stiffener ,lh |
|
- | |||||
| 151 | 316404600 | Shield,bodyside |
|
$ 49.30 | |||||
| 170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| 170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| 170 | 316112500 | Template,anti-tip |
|
$ 3.55 | |||||
| 170 | 316112005 | Anti Tip Kit,assembly (Replaces: 316112003) |
|
Immediately | $ 18.91 | ||||
| 13A | 316513401 | Bracket,lever ,lower ,rack Sensing |
|
$ 15.54 | |||||
| 33A | 316402100 | Shield,rear Wall ,lower |
|
$ 47.30 | |||||
| 3A | 316400143 | Panel,bodyside ,white ,lh (Replaces: 316400117) |
|
$ 140.85 | |||||
| 58A | 316406604 | Insulation,oven Wrapper (Replaces: 316406601) |
|
Immediately | $ 69.77 | ||||
| 58B | 316406502 | Insulation,oven Back |
|
- | |||||
| 58C | 316509600 | Insulation,lower Shield |
|
- | |||||
| 58D | 316509700 | Insulation,oven Bottom |
|
$ 60.25 | |||||
| 59A | 316510000 | Vent Tube,oven ,upper |
|
$ 41.53 | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 318219500 | Rack,broiler Pan |
|
- | |||||
| 6B | 316496205 | Rack,oven |
|
$ 134.67 | |||||
| 6C | 316496201 | Rack,oven ,(1) (Replaces: 316498003) |
|
Immediately | $ 103.48 | ||||
| 8A | 316505701 | Base,bake Element |
|
$ 244.44 | |||||
| 8B | 316506000 | Bracket,support ,oven Bottom ,(2) |
|
$ 4.55 | |||||
| 8C | 316505801 | Support,element |
|
$ 25.48 | |||||
| F108 | 5304467898 | Motor,fan (Replaces: 316415800) |
|
Immediately | $ 225.67 | ||||
| F12 | 316445500 | Switch,oven Light ,door Frame |
|
Immediately | $ 54.74 | ||||
| F14 | 316508300 | Switch Assembly,rack Sensing |
|
$ 254.13 | |||||
| F15 | 5304523863 | Lamp,oven ,(2) ,halogen (Replaces: 316510700) |
|
Immediately | $ 69.01 | ||||
| F161 | 316211603 | Element,convection Fan ,350 W |
|
$ 255.86 | |||||
| F18 | 316405800 | Latch Assembly,oven Door |
|
Immediately | $ 56.74 | ||||
| F37 | 316490000 | Probe,oven Temp |
|
Immediately | $ 58.30 | ||||
| F66 | 5304511881 | Element,broil (Replaces: 316506300) |
|
Immediately | $ 81.14 | ||||
| F67 | 316505500 | Element,bake ,3000w |
|
Immediately | $ 259.25 | ||||
| F89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| F90 | 316539900 | Filter,noise ,lock Motor ,suppressor |
|
$ 68.61 | |||||
| FNI | 316506201 | Wiring Harness,main |
|
- | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316205500 | Nut,hex Flange ,3/8 10-32 |
|
$ 11.34 | |||||
| NI | 3203550 | Plug,button ,oven Bottom |
|
Immediately | $ 15.22 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316418901 | Screw,trilobe ,10-32 X 5/16`` |
|
$ 14.18 | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NI | 316008401 | Washer,3/4 Od X 1/4 Id ,steel |
|
$ 11.34 | |||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| NI | 316021132 | Screw,8-18 X 11/16 ,black |
|
$ 12.89 | |||||
| NI | 316279600 | Screw,bracket ,stiffener ,(4) |
|
$ 12.05 | |||||
| NI | 3131737 | Washer-black |
|
$ 5.59 |
