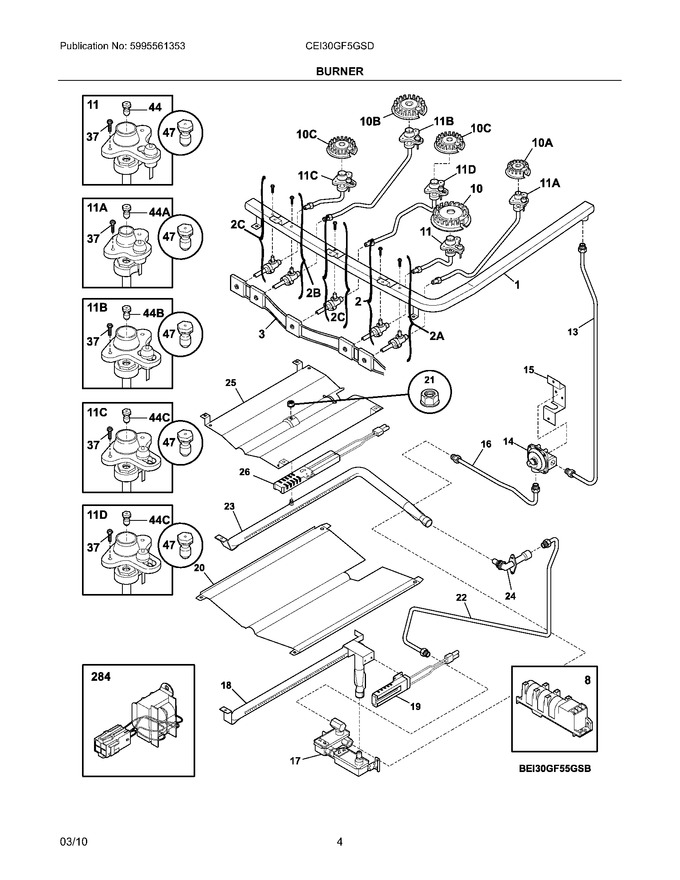

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
14	5304521339		Regulator,pressure   (Replaces: 316416700)			Immediately	$ 105.42
15	316091600		Bracket-regulator				$ 73.56
20	5304519024		Baffle,oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
25	316401301		Baffle,broil Burner				$ 173.57
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
284	316536100		Transformer			Immediately	$ 210.83
F1	316505200		Manifold		Appelez-nous	-
F10	316223300		Burner,sealed ,16/17k				$ 117.66
F10A	316206401		Burner,sealed ,5k				$ 64.50
F10B	316223400		Burner,sealed ,14k				$ 94.50
F10C	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F11	316430500		Ignitor/orifice Assy.,top Burner ,right Front,16k ,w/holder ,tube				$ 182.86
F11A	316430801		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube				$ 92.15
F11B	316430400		Ignitor/orifice Assy.,top Burner ,left Rear,14k ,w/holder ,tube				$ 217.66
F11C	316237805		Ignitor/orifice Assy.,top Burner ,front				$ 132.71
F11D	316430700		Ignitor/orifice Assy.,top Burner ,center,9.5k ,w/holder, Tube				$ 132.71
F13	316545700		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 148.58
F16	5304507348		Tube-valve To Rgltr,3/8   (Replaces: 316431000)			Immediately	$ 47.03
F17	316404901		Valve,safety				$ 365.72
F18	316404400		Burner,oven				$ 109.10
F19	5304506545		Ignitor,oven Burner   (Replaces: 316489404)			Immediately	$ 94.21
F2	316520703		Valve,burner ,14.2k				$ 146.01
F22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 50.06
F23	316404302		Burner,broiler				$ 104.18
F24	5304516894		Elbow,mixer   (Replaces: 316409700)				$ 87.21
F26	316489403		Ignitor,burner			Immediately	$ 113.15
F2A	316520705		Valve,burner ,5k				$ 86.89
F2B	316520708		Valve,burner ,14k		Appelez-nous	-
F2C	316520706		Valve,burner ,9.5k				$ 98.12
F3	316518200		Harness Assembly,ignitor ,w/switches				$ 104.33
F44	316237912		Orifice,top Burner ,16k		Appelez-nous	-
F44A	316237903		Orifice-top Burner,5k				$ 67.83
F44B	316237900		Orifice,top Burner ,14k				$ 63.80
F44C	316237902		Orifice,top Burner ,9.5k				$ 65.22
F47	316243716		Lp Conversion Kit,gray				$ 125.21
FNI	316526900		Harness,ignitor				$ 70.88
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 12.89
NI	316401500		Cover,broil Ignitor				$ 12.89
NI	316434900		Shield,valve ,bridge Burner				$ 11.55
NI	316064103		Wire,ground Assembly		Appelez-nous	-
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316443200		Bracket-support		Appelez-nous	-
