SELECT A DIAGRAM

01 - Cover


03 - Dry Cab,heater


05 - Frnt Pnl,door


07 - Control Panel


09 - Motor,blower

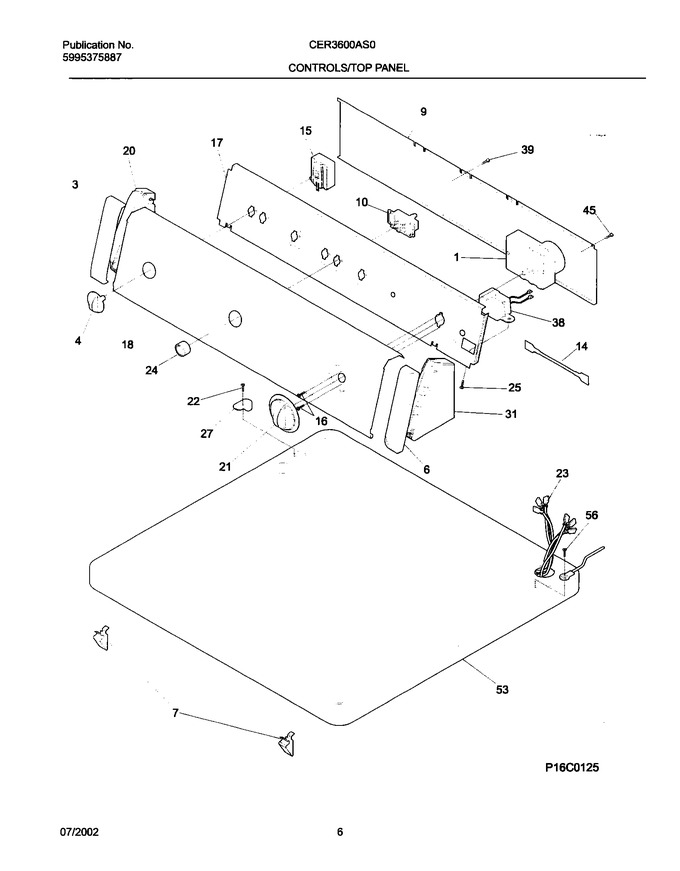

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297177		Timer - Dryer				$ 229.64
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	134088700		Backsheet-f Console		Appelez-nous	-
16	134034300		Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming		Appelez-nous	-
17	131728900		Bracket-control		Appelez-nous	-
18	134155300		Trimplate Fde/b2wsjf		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	134011703		Knob-timer			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel-top Fs Wht				$ 203.75
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,56 ,cr/sq Drive				$ 10.46
F10	131469000		Switch-push/start			Immediately	$ 55.81
F14	3205243		Resistor-power, 4.4k		Appelez-nous	-
F15	131243200		Switch-2pos Temp/bzr/xtra Rins		Appelez-nous	-
F23	134109500		Harness-fsd Wsj/psj Elec				$ 249.22
F24	131111501		Button-start Switch,white				$ 13.79
F38	5303210285		Buzzer				$ 65.78

    View Diagram in Separate Window       Print Part List
