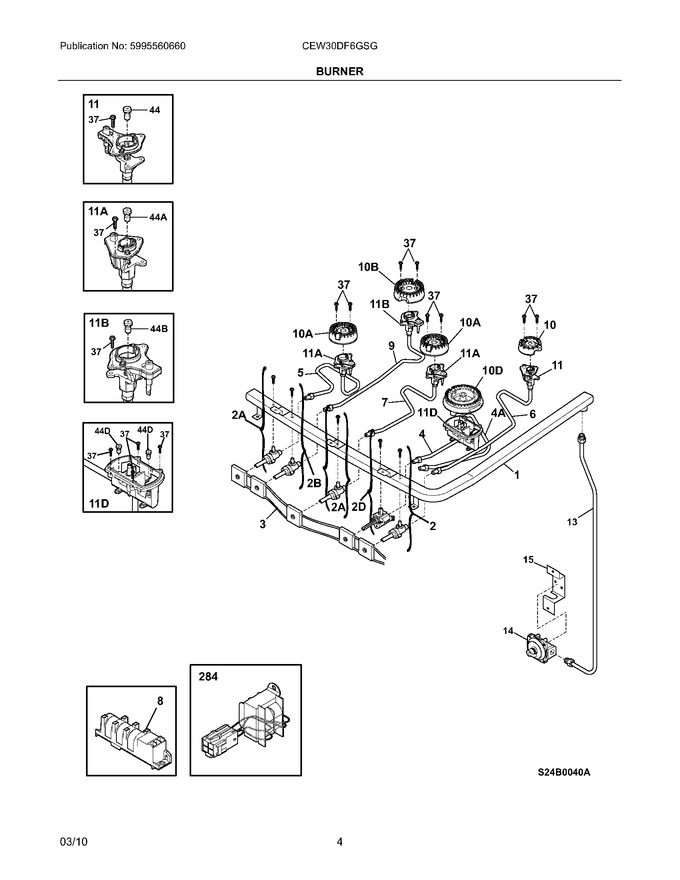

01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 808608804 | Module,spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 37 | 316540900 | Screw,burner ,head Mtg ,(8) |
|
Immediately | $ 15.17 | ||||
| 284 | 316536100 | Transformer |
|
Immediately | $ 210.83 | ||||
| F1 | 316505200 | Manifold |
|
- | |||||
| F10 | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 56.70 | ||||
| F10A | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 52.45 | ||||
| F10B | 316438600 | Burner,sealed ,14k |
|
Immediately | $ 79.80 | ||||
| F10D | 316525401 | Burner,sealed ,dual ,18k |
|
$ 187.54 | |||||
| F11 | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 11.20 | |||||
| F11A | 316540700 | Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder |
|
$ 11.15 | |||||
| F11B | 316543204 | Ignitor/orifice Assy.,top Burner ,front |
|
$ 12.33 | |||||
| F11D | 316525100 | Ignitor/orifice Assy.,top Burner ,18k ,w/holder |
|
- | |||||
| F13 | 316545700 | Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings |
|
$ 148.58 | |||||
| F14 | 318122700 | Regulator,pressure (Replaces: 316470719) |
|
$ 139.63 | |||||
| F2 | 316520700 | Valve,burner ,5k |
|
$ 126.87 | |||||
| F2A | 316520701 | Valve,burner ,9.5k |
|
$ 131.84 | |||||
| F2B | 316520703 | Valve,burner ,14.2k |
|
$ 146.01 | |||||
| F2D | 316574901 | Valve,top Burner ,18k |
|
$ 89.51 | |||||
| F3 | 316518201 | Harness Assembly,ignitor ,w/switches |
|
$ 204.03 | |||||
| F4 | 316509000 | Tube,burner ,right Front |
|
$ 95.34 | |||||
| F44 | 316527504 | Orifice,top Burner ,5k |
|
$ 22.68 | |||||
| F44A | 316527500 | Orifice,top Burner ,9.5k |
|
$ 21.40 | |||||
| F44B | 316527511 | Orifice,top Burner ,14k |
|
$ 19.85 | |||||
| F44D | 316523508 | Orifice,top Burner ,18k |
|
$ 13.23 | |||||
| F4A | 316509100 | Tube,burner ,right Front |
|
$ 91.40 | |||||
| F5 | 316509300 | Tube,burner ,rf & Lf ,(2) |
|
- | |||||
| F6 | 316509200 | Tube,burner ,rr |
|
- | |||||
| F7 | 316509400 | Tube,burner ,center |
|
$ 117.28 | |||||
| F9 | 316526600 | Tube,burner ,left Rear |
|
$ 107.69 | |||||
| FNI | 316526900 | Harness,ignitor |
|
$ 70.88 | |||||
| FNI | 316064103 | Wire,ground Assembly |
|
- | |||||
| NI | 316434900 | Shield,valve ,bridge Burner |
|
$ 11.55 | |||||
| NI | 316443200 | Bracket-support |
|
- | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
