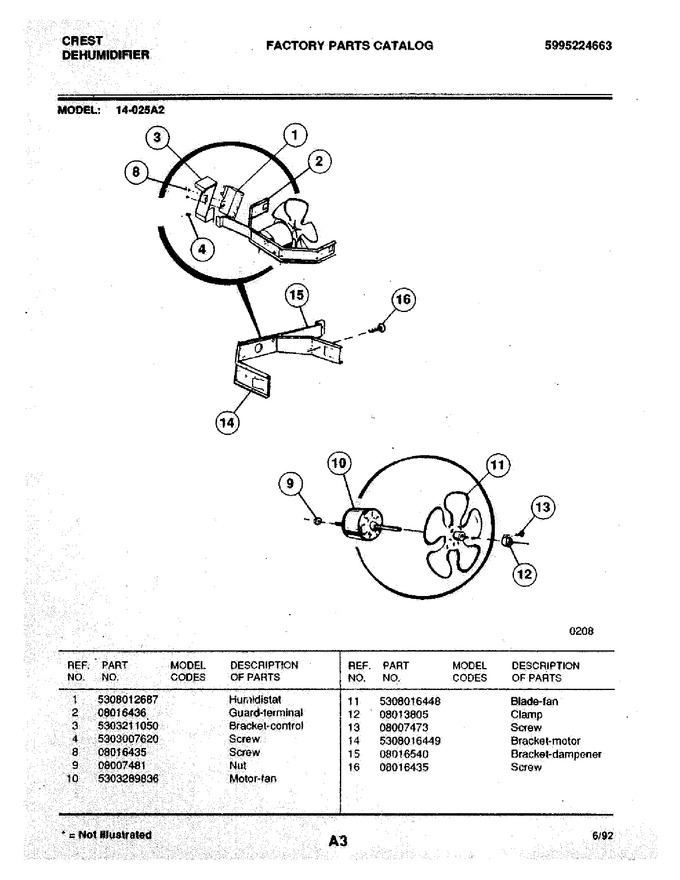

03 - Fan
04 - Condenser
05 - Compressor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012687 | Humidistat |
|
- | |||||
| 2 | 08016436 | Guard-terminal |
|
- | |||||
| 3 | 5303211050 | Bracket-control |
|
- | |||||
| 4 | 5303007620 | Screw |
|
$ 9.31 | |||||
| 8 | 08016435 | Screw |
|
- | |||||
| 9 | 08007481 | Nut |
|
$ 5.81 | |||||
| 10 | 5303289836 | Motor-fan |
|
- | |||||
| 11 | 5308016448 | Blade-fan |
|
- | |||||
| 12 | 08013805 | Clamp |
|
- | |||||
| 13 | 08007473 | Screw |
|
- | |||||
| 14 | 5308016449 | Bracket-motor |
|
- | |||||
| 15 | 08016540 | Bracket-dampener |
|
- | |||||
| 16 | 08016435 | Screw |
|
- |
