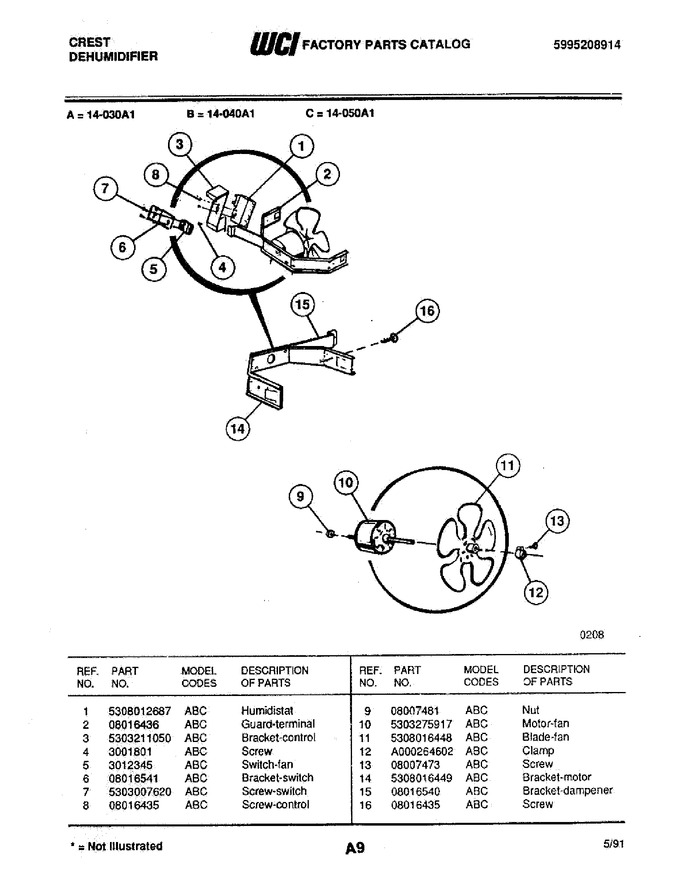

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012687 | Humidistat |
|
- | |||||
| 2 | 08016436 | Guard-terminal |
|
- | |||||
| 3 | 5303211050 | Bracket-control |
|
- | |||||
| 4 | 3001801 | Screw |
|
- | |||||
| 5 | 3012345 | Switch-fan |
|
- | |||||
| 6 | 08016541 | Bracket-switch |
|
- | |||||
| 7 | 5303007620 | Screw-switch |
|
$ 9.31 | |||||
| 8 | 08016435 | Screw-control |
|
- | |||||
| 9 | 08007481 | Nut |
|
$ 5.81 | |||||
| 10 | 5303275917 | Motor-fan |
|
- | |||||
| 11 | 5308016448 | Blade-fan |
|
- | |||||
| 12 | A000264602 | Clamp |
|
- | |||||
| 13 | 08007473 | Screw |
|
- | |||||
| 14 | 5308016449 | Bracket-motor |
|
- | |||||
| 15 | 08016540 | Bracket-dampener |
|
- | |||||
| 16 | 08016435 | Screw |
|
- |
