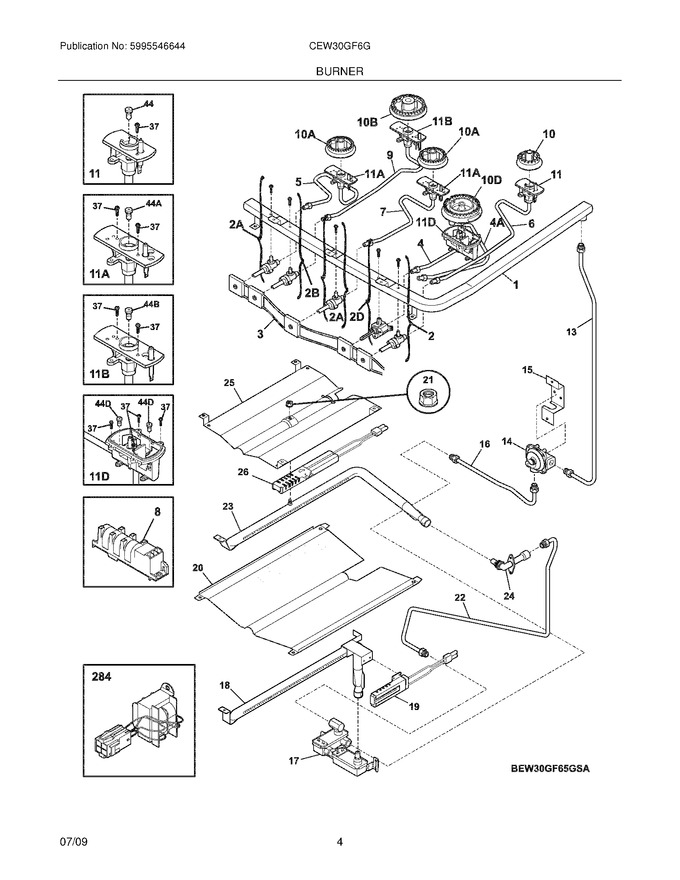

05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 7316518201 | Harness Assembly,ignitor ,w/switches |
|
- | |||||
| 8 | 808608804 | Module,spark (Replaces: 7318079001) |
|
Immediately | $ 76.06 | ||||
| 15 | 7316091600 | Bracket,regulator |
|
- | |||||
| 20 | 7316401401 | Baffle,oven Burner |
|
- | |||||
| 21 | 75303013272 | Nut,hex Head Sems |
|
- | |||||
| 25 | 7316401301 | Baffle,broil Burner |
|
- | |||||
| 37 | 316540900 | Screw,ignitor Assy Mt ,6-32 X .62 (Replaces: 7316518100) |
|
Immediately | $ 15.17 | ||||
| 44 | 7316523504 | Orifice,top Burner ,5k |
|
- | |||||
| 284 | 316536100 | Transformer (Replaces: 7316536100) |
|
Immediately | $ 210.83 | ||||
| 44A | 7316523500 | Orifice,top Burner ,9.5k |
|
- | |||||
| 44B | 7316523506 | Orifice,top Burner ,14k |
|
- | |||||
| 44D | 7316523508 | Orifice,top Burner ,18k |
|
- | |||||
| F1 | 7316505200 | Manifold |
|
- | |||||
| F10 | 7316510800 | Burner,sealed ,5k |
|
- | |||||
| F10A | 7316511000 | Burner,sealed ,9.5k |
|
- | |||||
| F10B | 7316511200 | Burner,sealed ,14k |
|
- | |||||
| F10D | 7316525400 | Burner,sealed ,dual ,18k |
|
- | |||||
| F11 | 7316524800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
- | |||||
| F11A | 7316524900 | Ignitor/orifice Assy.,top Burner ,9.5k ,(2),w/holder |
|
- | |||||
| F11B | 7316525000 | Ignitor/orifice Assy.,top Burner ,14k ,w/holder |
|
- | |||||
| F11D | 7316525100 | Ignitor/orifice Assy.,top Burner ,18k ,w/holder |
|
- | |||||
| F13 | 7316545700 | Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings |
|
- | |||||
| F14 | 7316416700 | Regulator,pressure |
|
- | |||||
| F16 | 7316431000 | Tube-valve To Rgltr,3/8 |
|
- | |||||
| F17 | 316404901 | Valve,safety (Replaces: 7316404901) |
|
$ 365.72 | |||||
| F18 | 316404400 | Burner,oven (Replaces: 7316404400) |
|
$ 109.10 | |||||
| F19 | 7316489400 | Ignitor,oven Burner |
|
- | |||||
| F2 | 7316520700 | Valve,burner ,5k |
|
- | |||||
| F22 | 7316537100 | Tube-valve To Mixer |
|
- | |||||
| F23 | 7316404300 | Burner,broiler |
|
- | |||||
| F24 | 7316409700 | Elbow,mixer |
|
- | |||||
| F26 | 7316489401 | Ignitor,burner |
|
- | |||||
| F2A | 7316520701 | Valve,burner ,9.5k |
|
- | |||||
| F2B | 7316520703 | Valve,burner ,14.2k |
|
- | |||||
| F2D | 7316412512 | Valve,top Burner ,18k ,dual Port |
|
- | |||||
| F4 | 7316509000 | Tube,burner ,right Front |
|
- | |||||
| F4A | 7316509100 | Tube,burner ,right Front |
|
- | |||||
| F5 | 7316509300 | Tube,burner ,rf & Lf ,(2) |
|
- | |||||
| F6 | 7316509200 | Tube,burner ,rr |
|
- | |||||
| F7 | 7316509400 | Tube,burner ,center |
|
- | |||||
| F9 | 7316526600 | Tube,burner ,left Rear |
|
- | |||||
| FNI | 7316526900 | Harness,ignitor |
|
- | |||||
| FNI | 7316064103 | Wire,ground Assembly |
|
- | |||||
| NI | 7316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
- | |||||
| NI | 7316434900 | Shield,valve ,bridge Burner |
|
- | |||||
| NI | 7316001003 | Screw,ground Wire |
|
- | |||||
| NI | 7316021105 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black |
|
- | |||||
| NI | 7316021110 | Screw,8-18 X 0.5 ,black |
|
- | |||||
| NI | 7316401500 | Cover,broil Ignitor |
|
- | |||||
| NI | 7316089500 | Screw,10-16 X .486 |
|
- | |||||
| NI | 7316021104 | Screw,hex ,8-18 X 3/8 ,nick ,(3) ,regulator Brkt |
|
- | |||||
| NI | 7316443200 | Bracket-support |
|
- |
