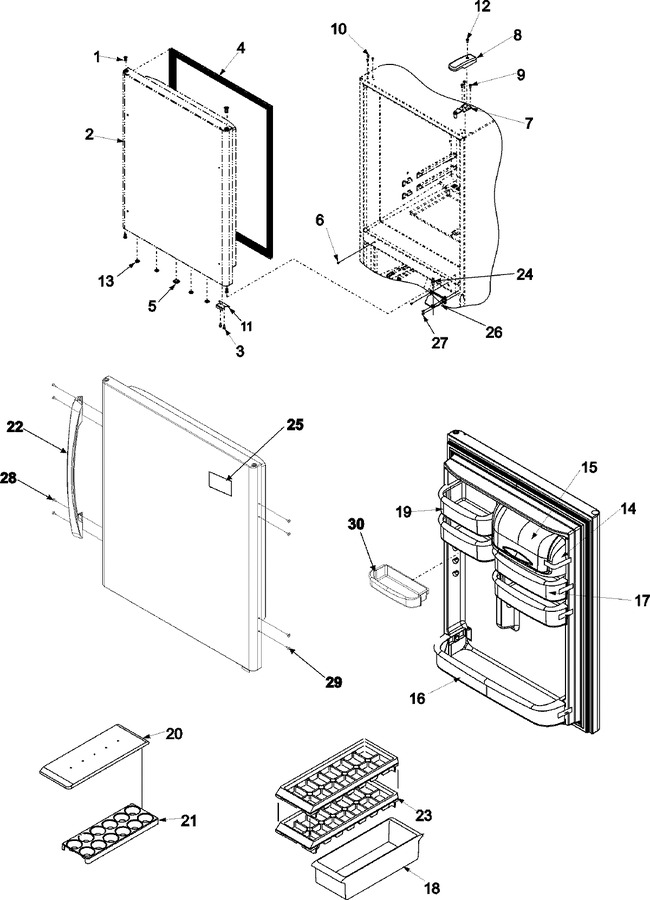

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 13 |
|
Immediately | $ 19.89 | |||
| 1 | 67004978 | Bushing, Door (blk) (Replaces: 67003369) | 10 |
|
Immediately | $ 19.89 | |||
| 2 | 67006031 | Door Assy., Ref. Foam (blk) | 13 |
|
- | ||||
| 2 | 67004036 | Door Assy., Ref. Foam (blk) | 10 |
|
- | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 7.38 | |||
| 3 | WP98165 | Screw (Replaces: 67006287) | 13 |
|
$ 7.71 | ||||
| 4 | WPW10436245 | Gasket, Ref Door (blk) (Replaces: 67003549) | 10 |
|
Immediately | $ 326.12 | |||
| 5 | A3080001 | Plug, Button (blk) | 10 |
|
- | ||||
| 6 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 7.59 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 42.42 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 44.74 | ||||
| 8 | 67001014 | Cover, Top Hinge (wht) | 13 |
|
$ 20.11 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 9.52 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 13 |
|
Immediately | $ 7.59 | |||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 13 |
|
Immediately | $ 7.39 | |||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.34 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
$ 13.28 | ||||
| 12 | WP8281196 | Screw-mach (Replaces: M0202327) | 10 |
|
Immediately | $ 6.80 | |||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 13 |
|
Immediately | $ 6.80 | |||
| 13 | 67004838 | Plug, Button (blk) (Replaces: 67001016) | 10 |
|
$ 10.09 | ||||
| 13 | 67004838 | Plug, Vent (blk) | 13 |
|
$ 10.09 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 79.21 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 102.59 | ||||
| 16 | 67001139 | Retainer, Door (Replaces: 67001296) | 10 |
|
Immediately | $ 94.31 | |||
| 17 | WPW10371193 | Bucket Assy, Ref. (med W/grip) (Replaces: 67003770) | 13 |
|
Immediately | $ 74.52 | |||
| 17 | 67003212 | Gripper, Bucket |
|
- | |||||
| 17 | WPW10324005 | Bucket, Med Ref Door (Replaces: 67003766) | 10 |
|
$ 69.98 | ||||
| 18 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 19 | 67001141 | Bucket, Small Ref Door (Replaces: 67003767) | 10 |
|
Immediately | $ 71.02 | |||
| 19 | 67003771 | Sm Ref Bucket/grip Assy | 13 |
|
- | ||||
| 20 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 | ||||
| 21 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 22 | 67003876 | Card, Handle Release | 10 |
|
$ 6.43 | ||||
| 22 | 67003963 | Handle Assy., Door (blk) | 10 |
|
- | ||||
| 22 | 67006805 | Handle, Side Mount (blk) | 13 |
|
- | ||||
| 23 | WP841180A | Tray, Ice (Replaces: 67001205) | 10 |
|
Immediately | $ 43.06 | |||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67002734) | 10 |
|
$ 7.90 | ||||
| 25 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 56.47 | |||
| 26 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) | 10 |
|
$ 150.62 | ||||
| 27 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 13.25 | ||||
| 28 | 67004047 | Screw (bsq) | 10 |
|
- | ||||
| 28 | WP12992902 | Screw, Handle Shoulder (Replaces: 12992902) | 13 |
|
$ 10.72 | ||||
| 28 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 13.28 | ||||
| 29 | WP12246608 | Plug, Handle Hole (blk) (Replaces: 12246603) | 10 |
|
Immediately | $ 7.34 | |||
| 30 | 67001656 | Trivet, Bottle | 10 |
|
$ 65.24 | ||||
| NI | 67001141 | Bucket (short) (Replaces: 67004276) |
|
Immediately | $ 71.02 | ||||
| NI | 67003211 | Gripper, Bucket |
|
- | |||||
| NI | WP67003639 | Closure, Door (blk) (Replaces: 67003639) | 10 |
|
Immediately | $ 81.29 |
