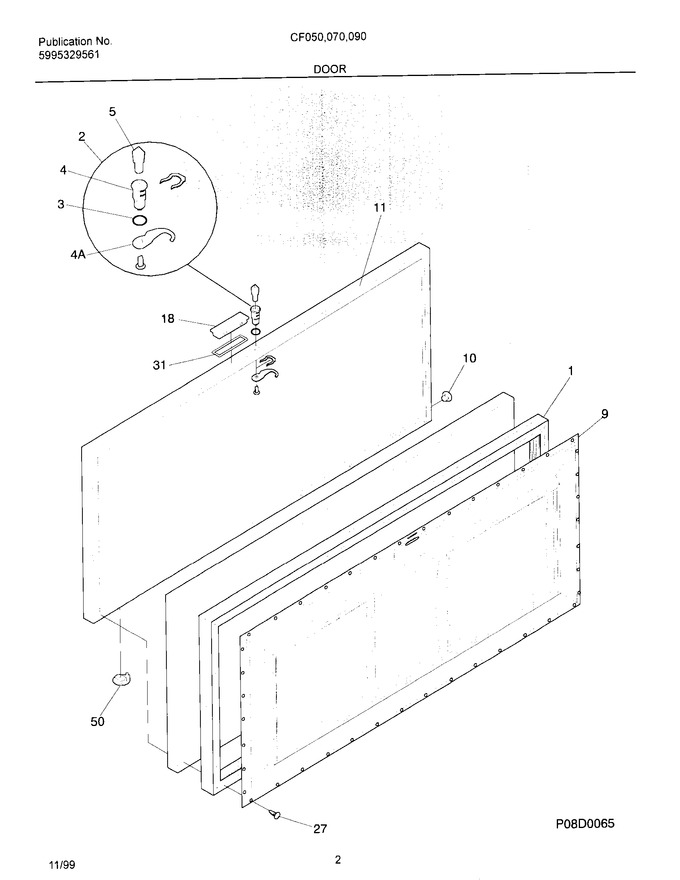

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480801		Gasket-door, White				$ 181.83
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216061500		Panel-inner Door\lid, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216106013		Lid Exterior-white		Appelez-nous	-
18	216140100		Handle-door		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
50	5303308306		Plug-button		Appelez-nous	-
	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
