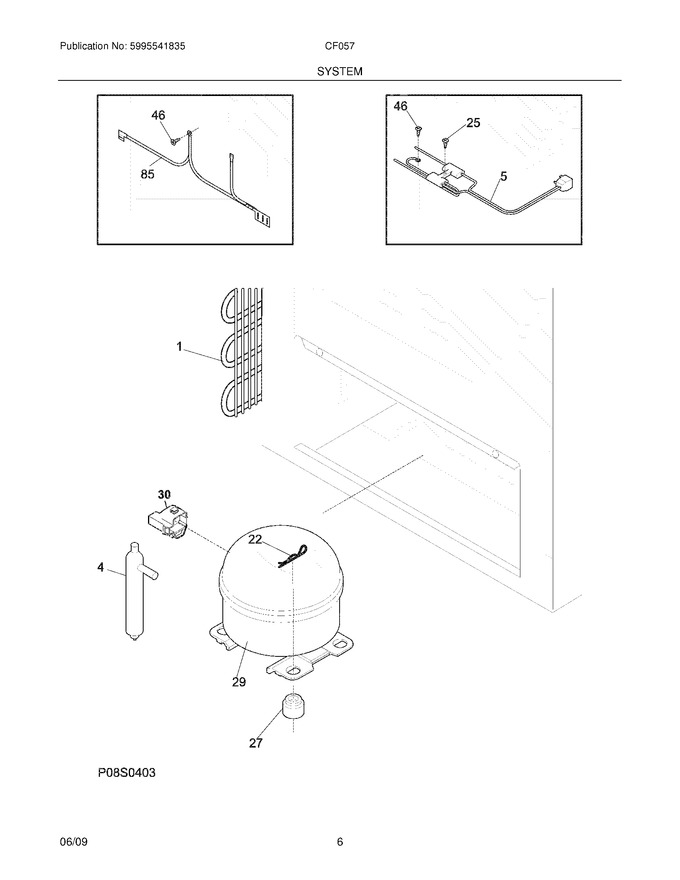

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300120779 | Condenser |
|
- | |||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 25 | 216707701 | Screw,8-18 X 1/2 |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 46 | 216707801 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- | |||||
| 85 | 216818300 | Wire-ground |
|
- | |||||
| F29 | 5304507765 | Compressor,assy ,w/electricals (Replaces: 297054400) |
|
Immediately | $ 677.23 | ||||
| F30 | 5304499966 | Relay Combo (Replaces: 297054500) |
|
$ 79.52 | |||||
| F5 | 216952000 | Harness-main |
|
$ 56.44 |
