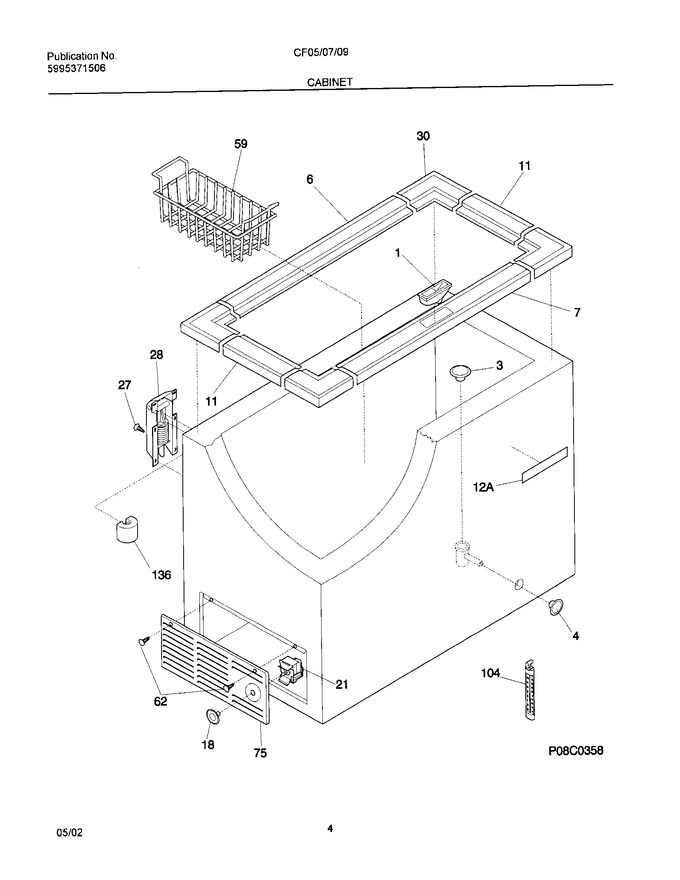

05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216117700 | Catch-lock |
|
- | |||||
| 3 | 216502600 | Plug-drain,interior |
|
Immediately | $ 17.35 | ||||
| 4 | 216073900 | Plug-drain,exterior |
|
- | |||||
| 6 | 216112800 | Breaker-hinge, White |
|
- | |||||
| 7 | 216112900 | Breaker-lock Side |
|
- | |||||
| 11 | 216105600 | Breaker-ends, White |
|
- | |||||
| 18 | 216707200 | Knob-control Cold |
|
$ 44.10 | |||||
| 21 | 216759300 | Control-temperature |
|
- | |||||
| 27 | 216337700 | Screw,hex Washer Head `10-24 X 0.500 |
|
- | |||||
| 28 | 216478800 | Hinge Assy |
|
- | |||||
| 30 | 216105500 | Breaker-corners,white |
|
$ 46.83 | |||||
| 59 | 216703400 | Basket |
|
- | |||||
| 75 | 216329402 | Panel-access,white |
|
- | |||||
| 104 | 216706400 | Thermometer |
|
- | |||||
| 136 | 216706700 | Guard-splash |
|
- | |||||
| 216621000 | Caster |
|
- | ||||||
| 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | |||||
| 12A | 216734501 | Nameplate |
|
- |
