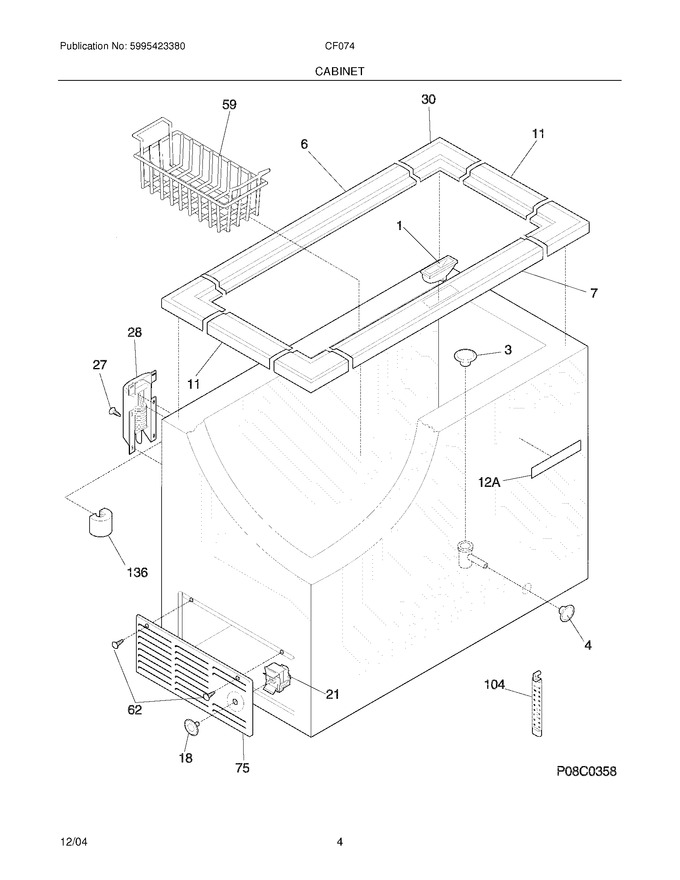

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117700		Catch-lock		Appelez-nous	-
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216855702		Breaker,side		Appelez-nous	-
7	216855703		Breaker-lock Side,white		Appelez-nous	-
11	216855706		Breaker-ends,white		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
59	216703400		Basket		Appelez-nous	-
62	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
75	216782000		Panel-access,white		Appelez-nous	-
104	216706400		Thermometer		Appelez-nous	-
136	216706700		Guard-splash		Appelez-nous	-
12A	216734501		Nameplate		Appelez-nous	-
F21	216759300		Control-temperature		Appelez-nous	-
NI	216621000		Caster		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
