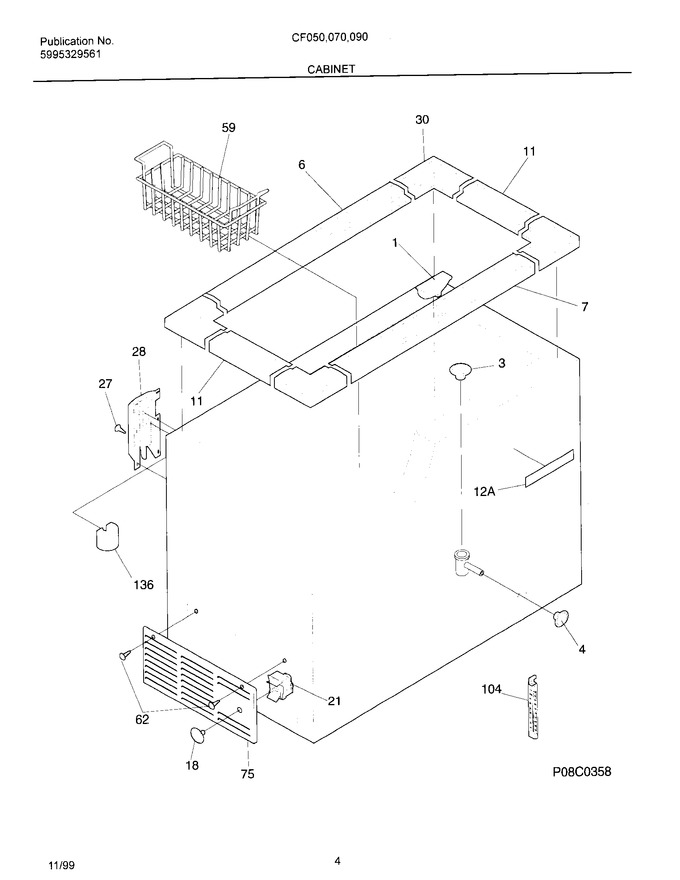

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117700		Support Lock		Appelez-nous	-
3	216073900		Plug-drain,interior		Appelez-nous	-
4	216502600		Plug-drain,exterior			Immediately	$ 17.35
6	216117500		Breaker-hinge Side, White		Appelez-nous	-
7	216117600		Breaker, Lock Side		Appelez-nous	-
11	216105600		Breaker-ends, White		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216627800		Control-temperature		Appelez-nous	-
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker, White, Corners				$ 46.83
59	216703400		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
75	216329402		Panel-access,white		Appelez-nous	-
104	216706400		Thermometer		Appelez-nous	-
136	216706700		Guard-splash		Appelez-nous	-
	216621000		Caster		Appelez-nous	-
	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
	216614300		Screw,10 X 3/8		Appelez-nous	-
	216621100		Wrench		Appelez-nous	-
12A	216496600		Nameplate		Appelez-nous	-
