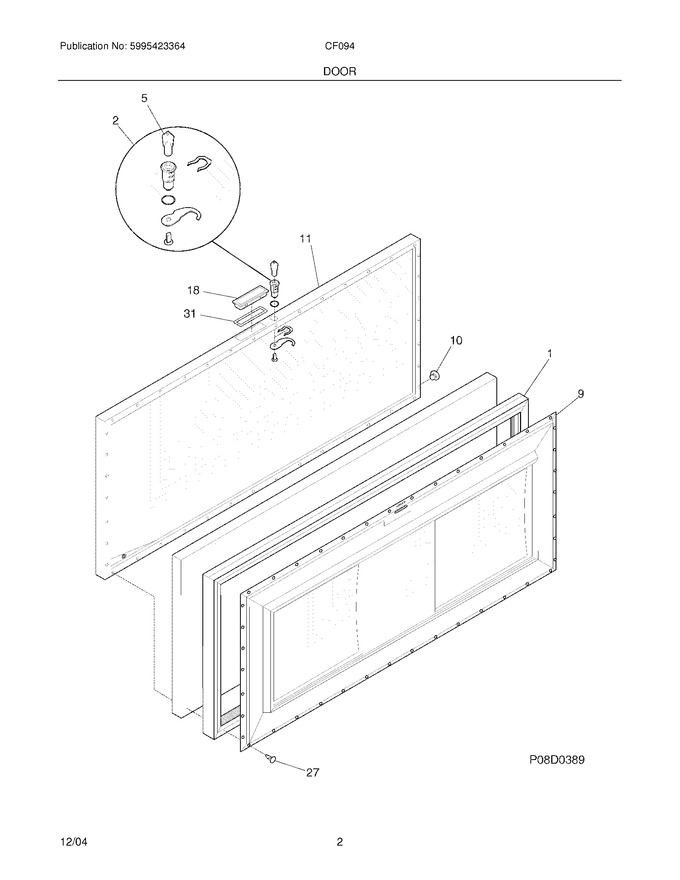

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481001		Gasket-door, White				$ 202.00
2	5303925107		Lock Assy		Appelez-nous	-
9	216061804		Panel-inner Door,white ,frzr		Appelez-nous	-
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216117909		Panel-outer Door,white		Appelez-nous	-
18	216140100		Handle,chrome		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
