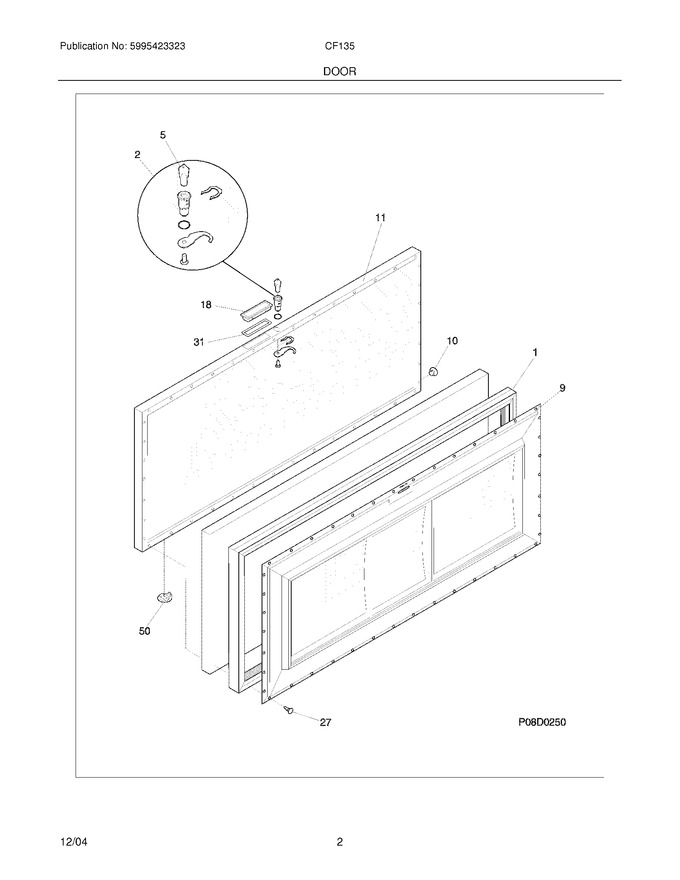

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481101 | Gasket-door, White |
|
$ 224.81 | |||||
| 9 | 216056908 | Panel-inner Door,frzr |
|
- | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216129801 | Panel-outer Lid,white |
|
- | |||||
| 18 | 216140100 | Handle,chrome |
|
- | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 31 | 08009392 | Gasket, White |
|
- | |||||
| 50 | 216855400 | Cover,hinge,w/tape,,(2) |
|
- | |||||
| F2 | 5303925107 | Lock Assy |
|
- | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 | ||||
| NI | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| NI | 5303313518 | Washer, Sealing |
|
- | |||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
