SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

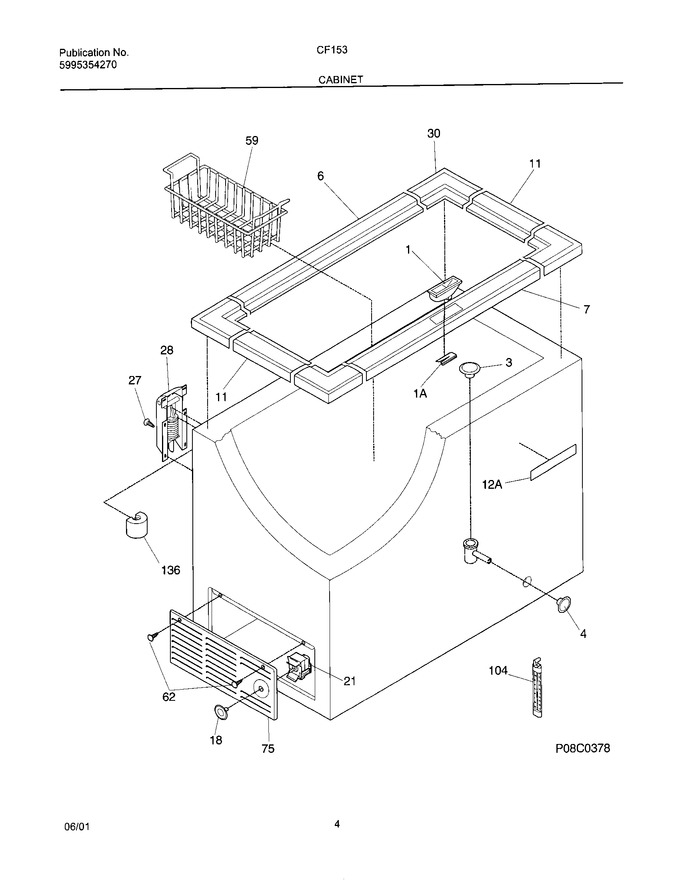

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216110900		Breaker		Appelez-nous	-
7	216111600		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker, White, End		Appelez-nous	-
18	216707200		Knob-control Cold				$ 44.10
21	216759000		Control-temperature		Appelez-nous	-
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	297321900		Hinge   (Replaces: 216035200)				$ 90.01
30	216110700		Breaker,white ,corners				$ 28.45
59	216703500		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
75	216034301		Panel-access, White				$ 103.01
104	216706400		Thermometer		Appelez-nous	-
136	216726600		Guard-splash		Appelez-nous	-
	09948773		Insulation, Drain Tube				$ 12.60
	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
	216621000		Caster		Appelez-nous	-
12A	216734501		Nameplate		Appelez-nous	-
1A	216080800		Support, Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
