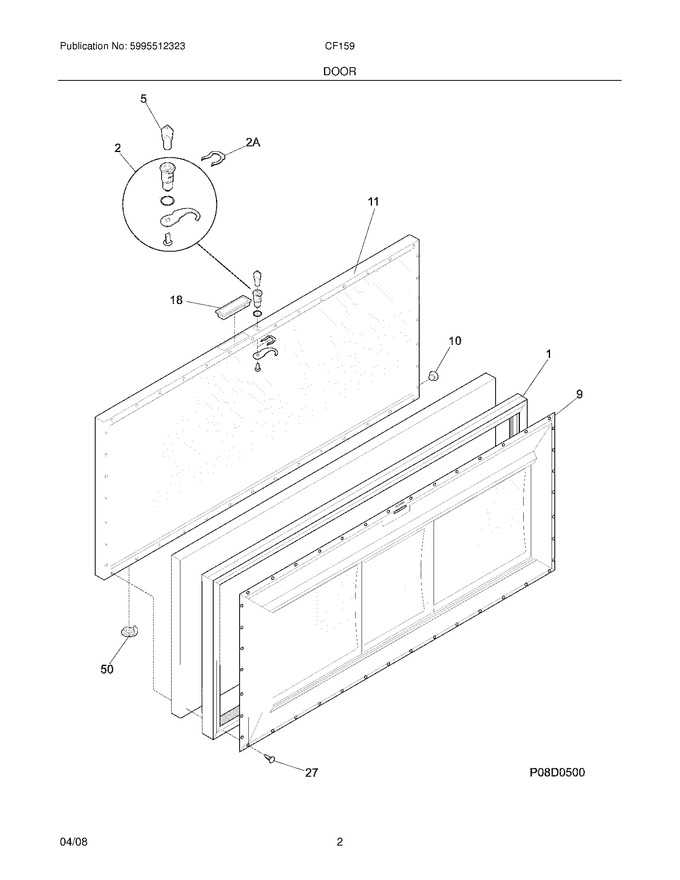

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	297090100		Lock Assy				$ 21.27
5	297147700		Key,lock			Immediately	$ 7.57
9	216057808		Panel-inner Door,frzr		Appelez-nous	-
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129901		Panel-lid		Appelez-nous	-
18	297034202		Handle,recessed ,chrome ,w/gasket				$ 39.43
27	5303212828		Clip,panel Mtg				$ 16.63
50	216855400		Cover,hinge,w/tape,,(2)		Appelez-nous	-
2A	297090900		Clip,spring				$ 10.85
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
