SELECT A DIAGRAM

Diagram for 02 - Cooktop Parts
02 - Cooktop Parts

Diagram for 03 - Burner, Manifold And Gas Control
03 - Burner, Manifold And Gas Control

Diagram for 04 - Burner Box Parts
04 - Burner Box Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303294770 Pipe-manifold Appelez-nous -
2 316009600 Valve-top Burner (4) Appelez-nous -
4 5303201274 Filter Appelez-nous -
6 5303201273 Tube-pilot (dual) Appelez-nous -
8 5303201275 Cap-top Pilot, (2) Appelez-nous -
9 3201276 Nut-compression Appelez-nous -
10 5303201277 Ferrule Appelez-nous -
23 5303207606 Burner-top-front-complete Appelez-nous -
24 5303207607 Burner-top-rear-complete Appelez-nous -
34 5308007974 Control Regulator Special Order $ 309.02

*10366 3202798 Pilot Shield Special Order $ 55.18

*10366 5303294765 Angle, Manifold Pipe, Mtg Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

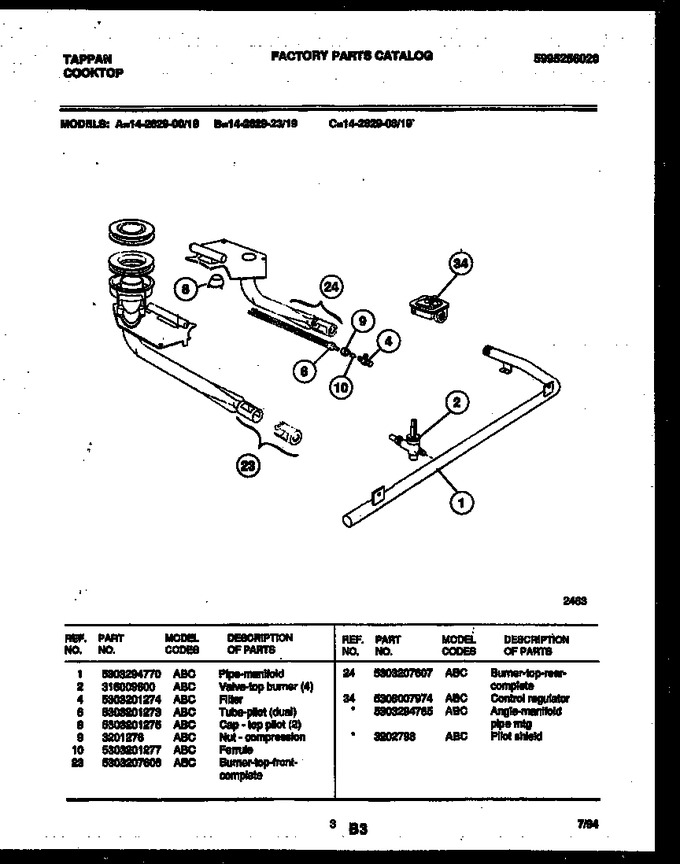

Diagram for 14-2629-00-19
