SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

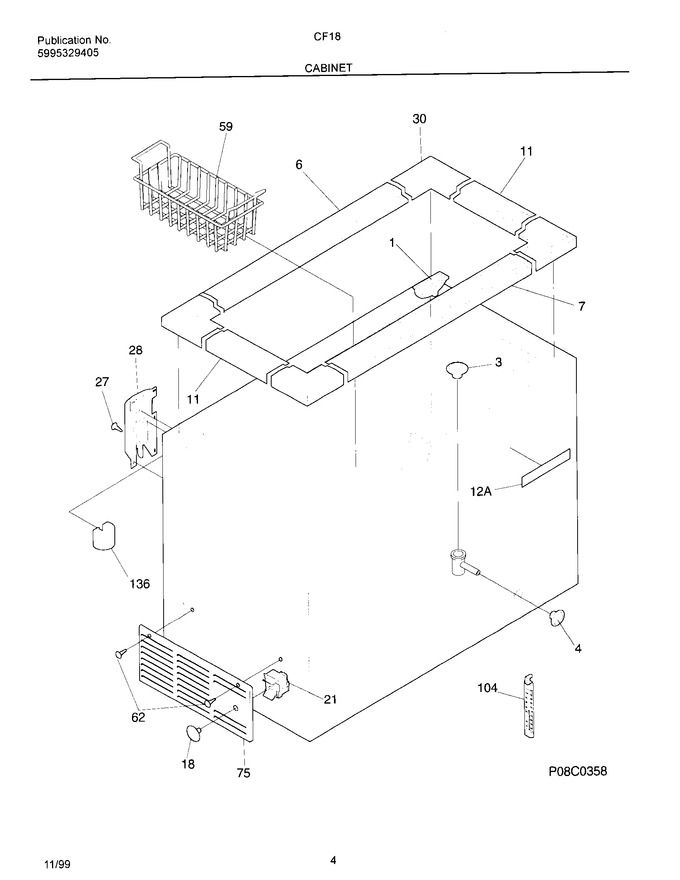

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
3	216073900		Plug-drain,interior		Appelez-nous	-
4	216502600		Plug-drain,exterior			Immediately	$ 17.35
6	216111100		Breaker		Appelez-nous	-
7	216111700		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216627700		Control-temperature		Appelez-nous	-
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216035600		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216703500		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
75	216034301		Panel-access, White				$ 103.01
104	216706400		Thermometer		Appelez-nous	-
136	216706600		Splash Guard		Appelez-nous	-
	09948773		Insulation, Drain Tube				$ 12.60
	216614300		Screw,10 X 3/8		Appelez-nous	-
	216621100		Wrench		Appelez-nous	-
	216621000		Caster		Appelez-nous	-
12A	216496600		Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
