SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

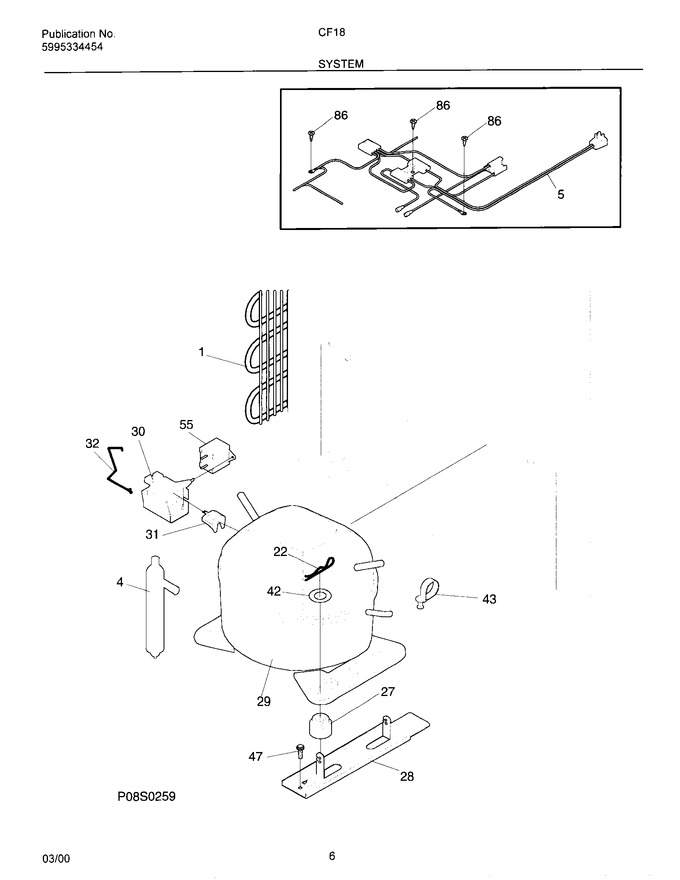

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303280307		Condenser				$ 640.71
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216551800		Harness,electrical				$ 140.02
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	218513300		Grommet-compr Mtg				$ 42.53
28	5303212615		Support, Compressor		Appelez-nous	-
29	216726200		Compressor,w/o Electricals		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	216100122		Overload Protector		Appelez-nous	-
32	215012000		Clamp, Elec Cont Mtg, Compressor				$ 2.63
42	216232700		Washer-flat		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
47	08016776		Screw-comp., Ind Hex Wshr Hd, 10-32t X 0.500		Appelez-nous	-
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
85	216533600		Wire-ground		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
	5303298960		Spacer-tube,.75``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
