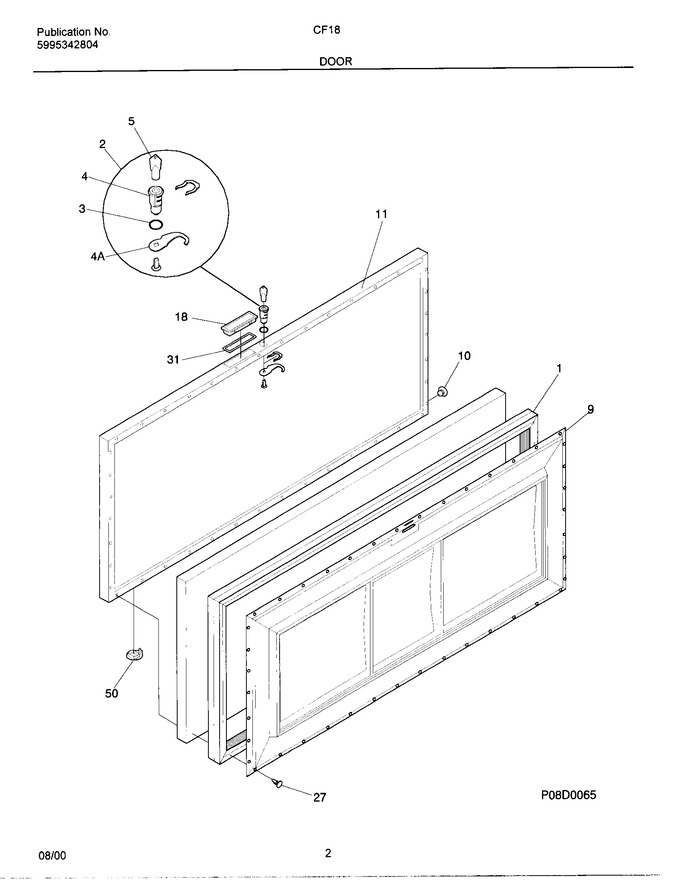

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481301		Gasket-door,white				$ 320.06
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216058708		Panel-inner Door,frzr		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216130001		Panel-outer Door, White		Appelez-nous	-
18	216140100		Handle,chrome		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
50	5303308306		Plug-button		Appelez-nous	-
	216703605		Insulation		Appelez-nous	-
	5303925098		Insulation				$ 120.65
